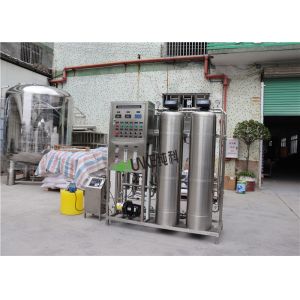

1000L Per Hour Brackish Water Treatment Plant Reverse Osmosis Machine

1000L Per Hour Brackish Water Treatment Plant Reverse Osmosis Machine

Machine description

Tap water→ booster pump→ sand filter→ carbon filter→5µs security filter→ high pressure pump→ one stage RO system→ well water
This RO ro water treatment plant price system is developed on the basis of tap water quality in Guangzhou, China. The process is as follows: The Raw water pump add pressure and pump water into sand filter which contains quartz sands which are used to remove the suspensions, colloids, rust, impurities in water as well as some microbes (such as red worm) →carbon filter which contains high quality first class fruit shell active carbons which are used to remove the organics in water as well as oxygen, bad odor, pesticide and colloids which are not removed thoroughly by sand filter→water softener, which is used to reduce the water hardness by exchange magnesian ion and calcium ion in water through cation resin so as to remove the state of calcium and magnesium ions→security filter which installed two pieces of 5µm PP filter (length 500mm) which are used to remove the impurities(diameter above 5µm). The previous procedure is called pretreatment of RO device which is mainly used to pretreatment for the raw water and ensure RO system work well and prolong the lifespan. After the process of pretreatment, high pressure pump pumped the water into one stage RO system. This system adopt two pcs 4040 membranes which are American DOW membrane., the unit desalination rate is 99%, the whole system desalination rate is 97%-99%(capacity 500L/H well water) under the condition of tap water quality in Guangzhou, the purified water can reach the state drinking water standard in China. (TDS ≤10µs/cm), Recovery rate is 65%, more or less. Equipped with stainless steel zwitterions combined bed will ensure water quality reach 1µs/cm.

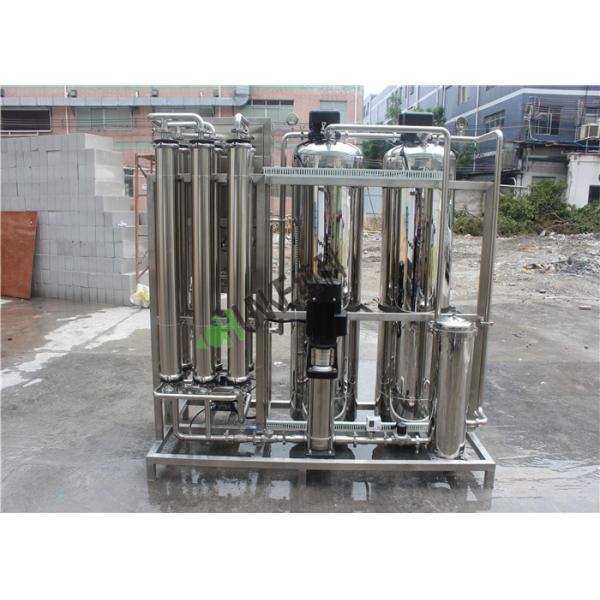

Picture show detail for your referance

Guangzhou Chunke Environmental Technology Co., Ltd. was established in 2009 is located in Guangzhou Baiyun District Junhe Street, near Guangzhou Baiyun International Airport, an independent mechanical processing, production, commissioning, testing, packaging workshop and spacious office building, the total area More than 6000 square meters.

The company has been committed to solving the drinking and industrial water treatment problems, specializing in the manufacture of desalination equipment, brackish water equipment, drinking pure water equipment, industrial water, ultra-pure water equipment and bottled water production line, the current products are exported to more than 100 countries And the region; and passed the ISO9001 international management quality system certification, the European Union CE certification, the United States Water Quality Association member units.

After years of development, the company production equipment, advanced management, a blend of water treatment and filling technology in a number of high-tech talent, in the machinery manufacturing, filtration technology, automation control, project management, bottled water plant planning A field to reach the international advanced level.

Chunke environmental technology companies adhere to the "integrity-based, technology first, the responsibility for the" business philosophy, and constantly upgrade the "Made in China" in the international competitive position. For your construction of quality assurance, leading the trend of "turnkey" project, is our unremitting efforts! With the company's development and improvement, will be better to provide comprehensive, timely, thoughtful, enthusiastic technical support and after-sales service to meet the needs of our customers. We warmly welcome customers and partners from all over the world to visit and exchange, and work together to solve the global water problem!
