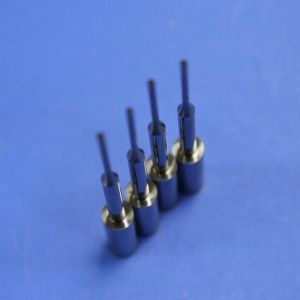

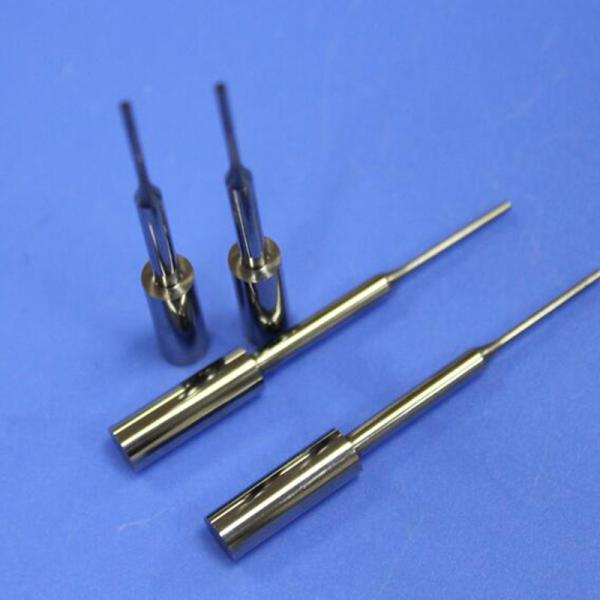

Φ1.2mm Precision Cemented Carbide Punch and Die Tungsten Pins

Φ1.2mm Precision Cemented Carbide Punch and Die Tungsten Pins

Cemented carbide processing tungsten carbide punch pin, tungsten pins
Tungsten steel processing non-standard customized carbide punch and die press tool forming pin.

High wear resistance, widely used for cast iron, non-ferrous metals and their alloys and Nonmetal processing tools, wear parts, but also for other alloys.

High bending strength,wear resistance lower than YG6,used for wear resistance parts etc.

Applicable to all kinds of metal and non-metallic powder molding and stamping.

Suitable for steel bars and steel tubes with high compression ratio. Forging, punching and punching tools for working under high stress.
Suitable for general wear resistant and impact resistant dies.

Tungsten Carbide Pin Technical parameters:

Tungsten steel material are chosen as processing for its material long-lasting physical properties, which goes beyond other metal tool materials. High wear resistance is one of the advantages of tungsten steel processing products. Under the actual working conditions of progressive molds, combined molds and multi-station molds, the tungsten steel mold materials are still durable. Thus, as a tool material, it is a good choice for mold products because of its high hardness, high strength and high wear resistance. According to the actual production operation, the processing of non-standard tungsten steel mold is taking the customer's specific drawing as the accuracy tolerance standard. The physical parameters of conventional tungsten steel forming pins can be referred to as follows:

• Grain size (um): 0.8 ~ 2.0
• Cobalt content (Co%): 6 ~ 10
• Density (g/cm³): 14.45
• Hardness HRA: 88 ~ 92
• Bending strength (Mpa): 3200 ~ 3800
• Young's modulus (Gpa): 570
• Compressive strength (Mpa): 4700

If the customer has special requirements, we can provide tungsten steel products with special requirements for production and processing.

Packing and Shipping:

Tungsten Carbide Processing products are packaged and shipped in accordance with the highest quality standards. All products are bubble-wrapped and sealed in heavy-duty cardboard or wooden boxes to ensure maximum protection.

For international shipments, the packages are also wrapped in waterproof plastic film for added protection. All packages are marked with barcodes and customer tracking numbers for easier tracking.
We ship our products via air freight, ground transportation, and ocean freight. All orders are shipped with full insurance and tracking numbers to ensure safe and timely delivery. We always strive to provide the best customer service by offering competitive rates, careful handling, and excellent customer service.

Zhuzhou Sanxin Cemented Carbide Manufacturing Co.,Ltd is located in Zhuzhou, Hunan Province, which is known as the “Hometown of Cemented Carbide”. It is a national high-tech enterprise that has passed ISO9001:2015 international quality certification system, specializing in manufacturing, research and development of cemented carbide materials and tungsten steel products’ raw material, blank production, tungsten steel precision processing and sales one-stop service.

Zhuzhou Sanxin Cemented Carbide Manufacturing Co.,Ltd inherits and precipitates Zhuzhou cemented carbide tungsten steel processing technology. We have a professional technical team, which lays a solid foundation for manufacturing high quality cemented carbide products. The advantages of cemented carbide products in related fields are obvious. We can provide you with a complete set of cemented carbide products and tungsten steel product solutions.

Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd produces and processes tungsten steel products, selects suitable cemented carbide materials, owns professional customized precision equipment, unique processing technology, implements strict quality control measures of 100% inspection and provides considerate pre-sales and after-sales services. We can produce and process non-standard custom carbide inserts, carbide cutters, carbide molds, carbide fixtures, carbide sheets, carbide rods, hard for customers who need it. Alloy pipe, carbide punching punch, carbide valve seat, carbide insert, cemented carbide nozzle, carbide wear parts, carbide mold parts, and other cemented carbide tungsten steel precision processed products for customers who have needs.

We focus on every process of cemented carbide production and processing, and we are able to meet the needs of our customers' usage requirements on precision tungsten steel processing to the maximum.
