Waterproof Fireproof Light Weight Metal Sandwich Panels

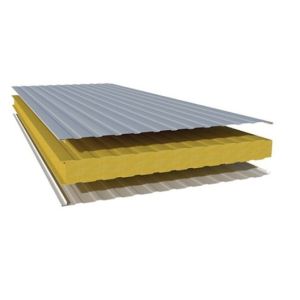

A sandwich panel is made of three layers: a low-density core and a
thin-skin layer boned to each side.
As the Wall panels the core usually use EPS, rockwool, glasswool,
PU and the thin-skin is metal sheet.
Application of Waterproof Fireproof Light Weight Metal Sandwich Panels
Sandwich panel is quite suitable to make the roofs and walls of
large scale public buildings, office buildings, supermarkets, and
industrial factory buildings, etc. It is applicable for textile
factories, chemical factories, electronic factories, furniture
factories, logistic centers, paper mills, and general prefabricated
buildings, etc.
Features of Waterproof Fireproof Light Weight Metal Sandwich Panels
1. Our sandwich panel is completely incombustible (excellent
fireproof performance), has a high degree of endurance, perfect
thermal resistance and excellent sound absorption efficiency.
2. It has high rate of endurance and excellent energy-saving
performance.
3. There is no formaldehyde in the sandwich PU panel, making it
environmentally friendly.
4. The unique spigot and interface design enhances its capability
to resist wind pressure.
5. Our sandwich PU panel are elegant in style and come in various
models.
6. There is no steel plate heat conduction at the connection point.
7. Two sides of the panel are sealed by polyurethane, to prevent
absorption of water by the core materials absorbing water and
increasing its durability.
Product Advantage
1. Excellent thermal insulation performance, thermal conductivity is
the lowest of all insulation materials.
2. Excellent fire safety performance without flame propagation.
3. Simple construction and high work efficiency.
4. The system has stable performance and long service life.
5. Excellent cost performance and high economic benefits.
6. Airtight sound insulation, green environmental protection.
Application
Industrial plants, warehouses, stadiums, residential buildings,
villas, mobile board houses and modular cold storage buildings,
used as roof board and wall board.
Parameters:
| Item | Specification |
| Effective width | 950mm or 1150mm or customized based on good amount |
| Thickness | 50mm, 75mm, 100mm, 150mm or customized |
| Outside layer | Corrugated Color Steel Sheet or PVC or aluminum foil |
| Insulation | EPS or rock wool or PU or fiber glass |
| Color | Blue, white gray or customized |
| Application | workshop, warehouse, supermarkets, hospitals, stadiums, cold
storage, activities room |
| Steel sheet thickness | 0.4-0.8mm, zinc coated: 80-120g/m2 |
| EPS sandwich panels | Density of the EPS 8-38kg/m3 |
Low water absorption High hardness Good anti-corrosion Good thermal insulated Light in weight Environment friendly |
| Rock wool sandwich panel | Density of the rock wool is 120kg/m3 |
Fire proof Good anti-corrosion Good thermal insulated Environment friendly |
| Fiber glass sandwich panel | Density of the fiber glass is 60kg/m3 |
Fire proof Light in weight Good anti-corrosion Good thermal insulated Environment friendly |
| PU sandwich panel | Density of the PU is 40-43kg/m3 |
Fire proof Rating: B1 Very good in heat insulate Low water absorption High hardness Light in weight Good anti-corrosion Good thermal insulated Environment friendly |
Installation instruction:
1, First of all, it must carry on the construction preparation
before installation, include personnel, materials, etc. All will be
well prepared.
2, Before the installation of polyurethane wall panel, it should
check whether the verticality and levelness of metope purlin
installation requirements, wall frame column vertical degree meets
the requirement.
3, Before installation polyurethane wall panel, it should first
mounting plate bottom water retaining plate and the bottom of the
window to block water board, water retaining plate and wall frame
beam connection with self tapping screw fixation.
4, Polyurethane wall panel links with ground.
Lateral links: fixed polyurethane sandwich panel with the ground at
the other end of the round hole with steel frame fixed, connection
between the two plate mouth involution, if occurrence crack of the
connectors available heat preservation to fill.
Vertical links: the gap between plates, using the dedicated button
concave groove in the fixed polyurethane wall panel.
Other products:
As a professional sandwich panel supplier in China, we also offer EPS sandwich panels, rock wool sandwich panels, glass wool sandwich
panels, among other products. These products are of high intensity,
reliable performance and high degree of automation. They are
applicable in industrial premises, warehouses, service stations,
offices, tourist villas, exhibition halls, stadiums, supermarkets,
and combined mobile houses, etc.
