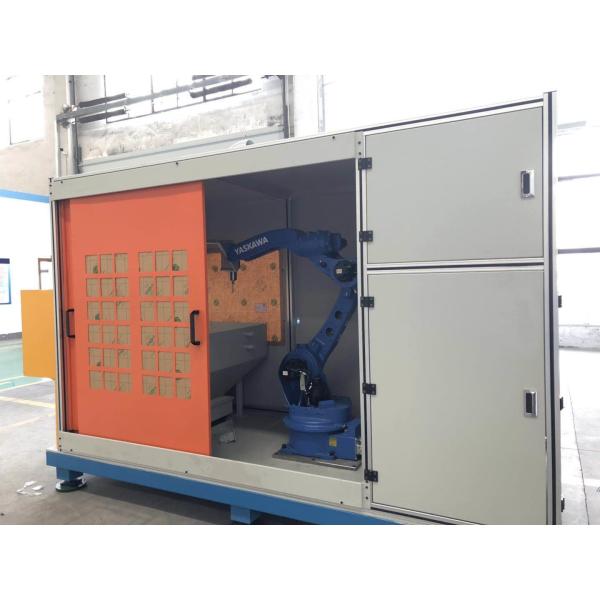

6KW Robotic Deburring Machine For Aluminum Kitchenware Burrs Removing

Robotic Deburring Machine For Aluminum Kitchen Ware Burrs Removing Metal Deburring Machine

1, General description

The robotic deburring machine is mainly used for deburring the burrs on the die casting surface.

2, Machine Specifications

(1) 2 station splitter speed: 60 / min (speed adjustable)

(2) 2 station splitter drive mode: 1.1KW geared motor (1:50 speed ratio)

(3) Flip axis angle: 0°-360° (angle can be flipped freely)
(4) Flip axis speed: 90r/min (maximum speed)
(5) Flip axis accuracy: repeat positioning accuracy ± 4 (arc.sec)
(6) Grinding head maximum speed: 18000 / min
(7) Grinding head drive mode: electric drive
(8) Machine power: 6KW
(9) Power supply: three-phase 380V/50HZ
(10) Gas source: three-phase 380V/50HZ
(11) Equipment size: 3470mm × 1500mm × 2050mm
(12) Equipment weight: 2900kg

3, Features

This auto deburring robot can remove the burrs easily, it is fully automatic, save labor cost.

With simple operation and fast speed.

SUZHOU RILANT MACHINERY CO.,LTD is a professional enterprise that is specialized in manufacturing, exporting &importing auto machines, moulds, filter components etc.

The main business scope included as below:

1, Die casting- deburring turnkey solution

2, Filtration-turnkey solution

3, Other customized machinery & Line
