| Brand Name : | Boyu |
| Model Number : | TY2x70-27 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100sets/month. |
| Delivery Time : | 15~25 days |

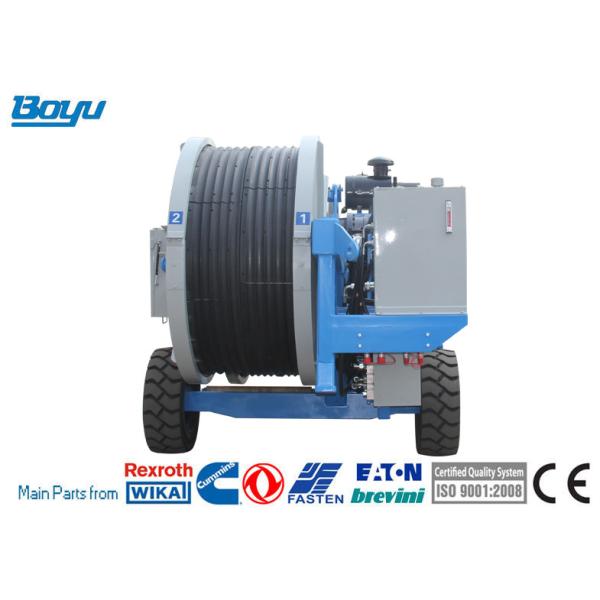

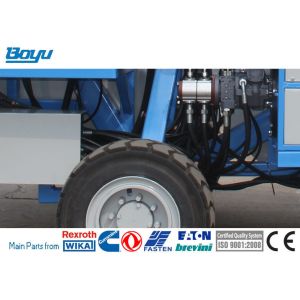

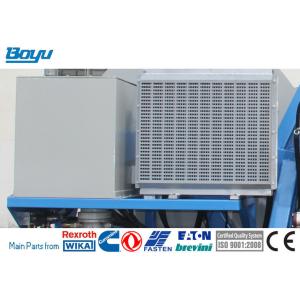

Tension Stringing Equipment Max Intermittent Tension 2x70kN Hydraulic Tensioner Diesel 77kw
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
| Performance | |
| Max intermittent tension | 2x70/1x140kN |
| Max continuous tension | 2x65/1x130kN |
| Speed at max tension | 2.5km/h |
| Max speed | 5km/h |
| Tension at max speed | 2x25/1x50kN |
| Max reverse pulling force | 2x60/1x120kN |
| Max reverse pulling speed | 5km/h |
| Engine | |
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electrical system | 24V |
| Characteristics | |
| Bull-wheel diameter | 1700mm |
| Max conductor diameter | 40mm |
| Groove number | 2x6 |
| Total weight | 7500kg |
| Overall dimension | 4700×2300×2700mm |
| Main configuration | |
| Engine | Cummins |
| Hydraulic pump | German Rexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
Grounding connection point
