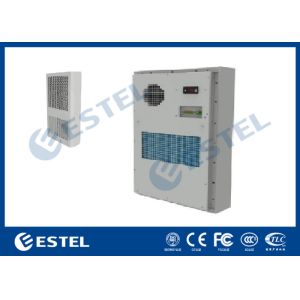

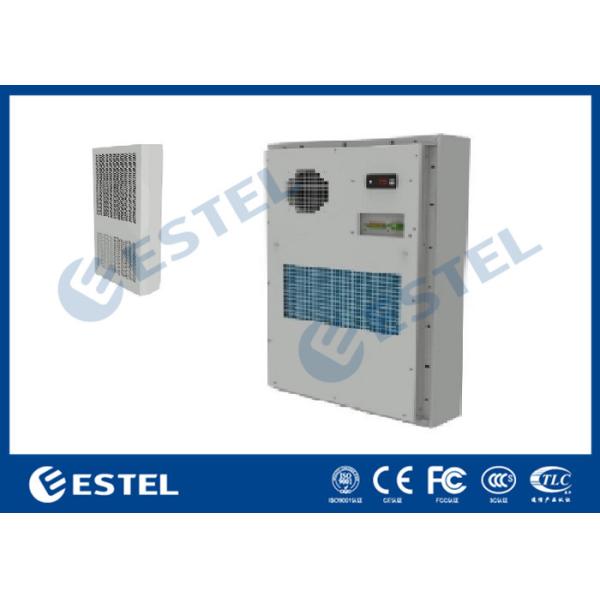

Door Mounted 1000W Cooling Capacity Outdoor Cabinet Air Conditioner
220VAC 50Hz
1. Air Conditioner Instructions
The air conditioner is one kind of refrigeration product
self-developed for cabinet. It is applicable in the place where the
cabinet internal heat is very large, the internal electronic
equipment is sensitive to the environment temperature and which
should be isolated internally and externally completely. This
product has multiple functions, high reliability, and has the
feature that it can start to work without complex debugging after
powering.
The fan in the internal cycle air path absorbs the hot air from the
upside to make air heat exchange by evaporator fins, and sends the
cooled air from the downside of the air conditioner. By so, the air
in cabinet can cycle to achieve the purpose of lowering the
temperature. Meanwhile, The fan in the external cycle air path
absorbs the external cold air from the downside, and discharges the
hot air from the upside after heat exchange.
2. Product Parameters
| Type | Parameters |
| Dimensions(Without flange) | H*W*D 750*450*200mm |
| Dimensions(With flange) | H*W*D 797*497*202 mm |
| Installation environment | Outdoor |
| Mounting method | Door mounted |
| Working temperature | -40℃ -55 ℃ |
| Input voltage | 220 VAC±15% ～/50Hz |
| Cooling capacity L35/L35 | 1000 W |
Rated Refrigerating input power(L35/L35) | 380W |
| Rated Refrigerating current (L35/L35) | 1.7A |
| Heating capacity | / |
| Internal airflow | 320 m3/h |
| IP grade | IP 55 |
| Refrigerant | R134a |
| Noise | 65 dB(A) |
| Weight | 24Kg |
3. Preparation And Installation
3.1 Removing package and checking
1. Please prepare installation tools: knife and scissors, and wear
protective gloves.
2. Please remove wrapping film and packing belt, then remove the
carton, take out the air conditioner.
3. Please check the attachment list and accessory bags in the
carton, check whether the air conditioner model is right .
Notes:
1. After removing the outer package, please make sure that the air
conditioner is placed upright , and not placed horizontally or
upside down.
2. After removing the outer package, please check carefully whether
the appearance of the air conditioner is damaged or oil polluted,
if the appearance of the air conditioner has obvious deformation or
oil stain, please contact the manufacturer in time.
3. If there is no need to install the product immediately or it
needs to be transported to other place, please repack the air
conditioner after the checking.
4. It is recommended to recycle the unpacking materials.
3.2 Mechanical installation
Installation tool: Phillips screwdriver
Installation Steps:
1) Choose cut location on the cabinet according to the holing
diagram, remove the shadow area and make the installation hole.
2) Make air conditioner flange close to cabinet door, Fix the air
conditioner on the installation surface of the cabinet firmly with
M5 screws.
3) Check whether air conditioner is installed levelly and firmly.
Notes:
1) Check whether air conditioner drainage loop is smooth, in case
that drainage is blocked.
2) When determine the location of the installation hole in the
cabinet, you should avoid the inlet and outlet air ports inside the
cabinet are not blocked by any components inside the cabinet, and
the two should be kept a horizontal distance of more than 150mm;
otherwise, it is prone to lead to r short circuit of the return
air, and poor cooling effect, etc.;
3) carrying or moving the air conditioner should be careful to
avoid colliding it and scratching its surface coating;
4. Installation Diagram
Note: the installation diagram is just for reference, the specific
installation scheme should be determined according to the
environment of the actual usage.
