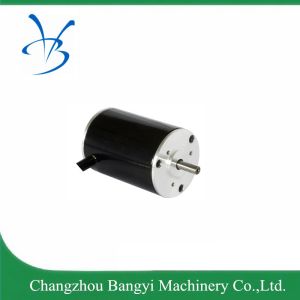

80bl90 310VDC 250W 0.8nm High Voltage high speed Brushless DC Motor

Name: 80bl90 310VDC 250W 08nm High Voltage high speed Brushless DC Motor
Brand: BANGYI MACHINERY
Price: 85 USD

Ask Lasest Price
Brand Name :	BANGYI MACHINERY
Model Number :	80BL90-3140
Price :	USD85/PCS
Payment Terms :	T/T, Western Union
Supply Ability :	1000/month
Delivery Time :	20-25 working days

Add to Cart

Product Details
Company Profile

80bl90 310VDC 250W 0.8nm High Voltage high speed Brushless DC Motor

Brushless DC Motor 80BL

General Specifications:
Winding type: star
Hall effect angle: 120° electrical angle
Shaft run out: 0.025mm
Radial play: 0.02mm@450g
End play: 0.08mm@450g
Insulation resistance: 100MΩ Min. 500v DC
Dielectric strength: 500VDC for 1 minute

Motor Specifications:

Model	Unit	80BL90-3140
Rated voltage	V	310
Rated out power	W	250
Rated speed	rpm	3000
Rated current	A	1.1
Rated torque	N.m	0.8
Peak current	A	3.3
Peak torque	N.m	2.4
Torque constant	N.m/A	0.741
Winding class		B
Motor Length	mm	90
Weight		1.7kg
Remark: 1.We can produce motor according to customer's requirements. 2.Motor can add gearbox and encoder.
