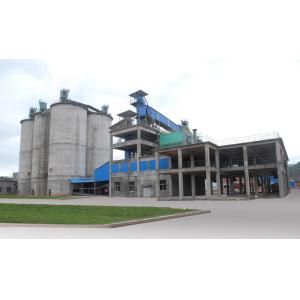

Stable Running Cement Plant Equipment 200- 300 TPD Low Power Consumption

200- 300 TPD cement manufacturing plant equipment

We provide the full range service including design, manufacturing, installation for new type dry method cement production line with capacity from 50t/d to 3000t/d.

Process of Cement Production Plant:

1. Raw Materials
The main raw materials used in the cement manufacturing process are limestone, sand, shale, clay, and iron ore. The main material limestone is usually mined on site while the other minor materials may be mined either on site or in nearby quarries. Another source of raw materials is industrial by-products.

2. Raw Material Preparation
Mining of limestone requires the use of drilling and blasting techniques. Blasting produces materials in a wide range of sizes from approximately 1.5 meters in diameter to small particles less than a few millimeters in diameter.
Material is loaded at the blasting face into trucks for transportation to the crushing plant. Through a series of crushers and screening, the limestone is reduced to a size less than 100 mm.
Depending on size, the minor materials (sand, shale, clay, and iron ore) may or may not be crushed before being stored in separate areas.

3. Crushing and Pre-homogenization
Most of the raw materials must be first crushed before being used to make cement. These raw materials include limestone, clay, iron ore, coal and etc. Limestone is the largest amount of raw materials to make cement. According to the raw materials' different particles and hardness, there are many crushers used in crushing these raw materials, such as jaw crusher, impact crusher, cone crusher and vertical shaft impact crusher and etc.

4. Raw Material Homogenization
In the process of new dry cement production, the stability of pit entry clinker raw material component is the premise of the whole system. Raw material homogenization system plays very important role in the stability of pit entry clinker raw material component.

5. Preheater and Calciner
Raw material preheating and decomposition is completed by preheater, which can improve the kiln system productivity and reduce heat consumption of clinker Purposes.

6. Cement Clinker Burning
Raw material is carried out into the rotary kiln clinker for completion after preheating in the preheater and pre-decomposition.

7. Cement Clinker Grinding
Cement Grinding is the last process of cement production line, also the most power consuming process. Its main function is to grind the cement clinker (and gelling agent, performance tuning materials, etc.) into the appropriate size and a certain particle size distribution, which is for increasing the size of its hydration, accelerating the hydration rate and meeting the coagulation, hardening requirements.

8. Cement Packaging.
We adopts advanced technology and equipment to improve the efficiency, technical level, advanced design, ensure the economical investment for the cement production line.

Features
1. High Efficiency
Cement production line adopts advanced technology and equipment to raise technical level and to ensure design indexes. New five-stage cyclone pre-heater system, high efficiency air girder grate cooler, multi-passage pulverized coal burner, Davison heat temperature fan, jet pulse dust collector, as well as chain-board elevator, chain conveyor adopted in this production line can ensure that the technology is advanced compared to other production lines with the same scale.

2. Saving Energy
Measures have been taken to save energy and reduce consumption. using chain-board elevator and air slides, reliability of the system is enhanced and conveying energy consumption is decreased.

3. Environmental protection
Effective measures have been taken to guarantee strict environment protection standards. Different efficient dust collectors are set at all dust producing points according to different characteristics of waste gas.

4. High degree of automation
There is no manual operation in the process of mill running, which realizes the automatic control with long-term, stable, effective, makes milling process more stable, realizes fine work of production.

Our Service

ZK CORP design research institute base on the foundation of imported technologies, absorbing others successful experience from domestic and abroad, through a series of experimental research work, we successfully complete the systemic development and research work of preheater and precalciner with independent intellectual property rights, finally we got the ability to provide a series of equipment of 100-3000 T/D cement clinker production. Our preheating& precalciner system has a series of unique technical characteristics, such as low resistance, high decomposed rate, high fuel adaptability, good anti clogging performance, high operational flexibility and reliable production.

FAQ:

What price terms you offer?

We can offer FOB/CFR/CIF/EXW and other price terms based on your request.

What payment terms you take?

We prefer T/T, but other terms also acceptable.

We kind of service you provide?

We provide Turnkey service, and also we could help you to train your stuff.

Can I visit your company?

Of course, our company located in Luoyang city Henan province, you are welcome to visit our place.

If you want to get price, please send email ec03@zkcorp.com or WhatsApp number:+86-18937185591.

Henan Zhengzhou Mining Machinery Co., Ltd (hereinafter referred to as “ZK”)., founded in 1956, is a designated production unit of building materials and mining machinery designated by the National Ministry of Machinery Industry and Henan Provincial Department of Machinery and Electronics Industry. After more than 60 years of development, our company has gradually developed from a single mechanical equipment manufacturing enterprise into a comprehensive company with strong ability of the whole system researching and designing on process technology and equipment manufacturing in the fields of building materials, mining, metallurgy, environmental protection etc.

After more than 60 years of development, it has gradually developed from a single mechanical equipment manufacturing enterprise into a high-tech enterprise which is integrating scientific research, engineering, manufacturing, installation, commissioning and operation guarantee, with a net asset of more than 200 million RMB. Now, Henan ZK Corp already has been growing up to a comprehensive company with strong ability of the whole system researching and designing on process technology and equipment manufacturing in the fields of building materials, mining, metallurgy, environmental protection etc.

The company is located in Qiaolou Caizhai Industrial Zone, West 5th Ring Road, Zhengzhou City, covering a land area of more than 80000 m², with workshop area of more than 60000 m², and office area of more than 5000 m². There are 6 modern workshops, 5 heavy workshops, equipped with the largest boring and milling machine, gear hobbing machine, vertical lathe, crane and other heavy equipment in Zhengzhou region, and more than 300 sets of manufacturing equipment. This enables us to independently complete the process system and large-to-medium equipment manufacturing. ZK has its own process experimental workshop, and testing & analysis center, capable of conducting pilot tests and data analysis for solid waste and hazardous waste treatment, building materials, metallurgical materials etc. These facilities allow us to provide process package, provide strong engineering and technical support for project engineering and construction, and ensure the successful execution of customer projects.

ZK  Zhengzhou Office is located in the Science and Technology Park of National University, the West Third Ring Road of Zhengzhou City, which includes the Oversea Business Department, E-commerce Department, Domestic Business Department, R&D Center, with an office area of more than 1500 m². In recent years, our oversea business has been covering more than 100 countries and regions in the world, and our domestic business has been covering all provinces and regions in China. We have established long-term good cooperation with many large and medium-sized enterprises at home and abroad. Our E-commerce Department has built our company into a "Henan E-commerce Demonstration Enterprise"; Our R&D Centre includes “Zhengzhou Municipal Enterprise Technology Center” and “Industrial Solid Waste Disposal Equipment Engineering Technology Research Centre”, which already formed a reasonable technical echelon of scientific researchers from undergraduate to doctor, from technician to senior engineer. Our R&D Centre already has had the EPC contracting ability to independently complete the whole set of process system and equipment researching and designing in many process technology and equipment manufacturing fields.

Our main process system products includes:

1.Environmental protection process for:

Hazardous Solid and Waste Solid Treatment (sludge, shale, chrome mud, red mud, fly ash, coal gangue, etc.), Dedusting and Flue Gas Purification etc.;

2.Building materials process for:

Light Expanded Aggregate (LECA), Ceramsite Sand, Oil Fracturing Proppant, Refractory, Powder, Lime, Cement Production etc.;

3.Mineral processing process for:

Iron Ore, Bauxite Ore, Kaolin, Copper Ore, Lead & Zinc Ore, Gold Ore, Fluorite Ore, Graphite Ore etc.;

4.Metallurgical process for:

Metal Magnesium Production Process (Calcination, Pelletizing, Reduction, and Refining);

5.Calcination/Sintering Process for :

Dolomite, Limestone, Magnesite, Bauxite, Kaolin, Filter cake from Sugar Plant and Paper Plant etc….

Rotary kiln, ball mill, vertical preheater, single barrel cooler, vertical cooler, dryer, granulator, feeder, dust collector, bucket elevator, crusher, magnetic separator, flotation machine, classifier and other complete sets of mechanical equipment.

Our main products of the process system include:

Over the past years, we have not only focused on the optimization and upgrading of traditional industry processes and equipment, but also complied with the market demand, committed to the comprehensive treatment and disposal of solid waste and hazardous waste process and equipment research and development, to achieve the purpose for harmless, reduction, stability and waste recycling. Our process system and equipment products are sold well in all provinces and regions in China, and has been exported to Russia, South Korea, the United States, Canada, Japan, Britain, Saudi Arabia, Vietnam, Thailand, Indonesia, Malaysia, Nepal, Bangladesh, Mexico, Kazakhstan, Turkey, Iran, Guatemala, India, Mongolia, Africa, South America and many other countries and regions, which have been well received by our clients.

"Virtue in advance, benefit after people" is our core cultural concept; "timely delivery, timely payment" is our work style; "Honest and Reliable" is our business foundation, "Precision and excellent performance" is our working habit, "Top quality service" is our permanent pursuit. We, always adheres to the quality policy of "Survival by Quality and Development by Science and Technology". Our company had passed "ISO14001: 2015 Environmental System Certification", "ISO9001: 2015 International Quality System Certification", and "ISO45001: 2018 Occupational Health and Safety Management System Certification", "2019 Certification of Evaluation Certificate of Integration Management System of Two Modernizations", and "2020 Construction Enterprise Qualification Certificate: Grade III Certification of Environmental Protection Engineering Professional Contracting". Our company has obtained more than 30 independent patent technologies, and has been affirmed and supported by all sectors of society. We have been recognized and supported by all sectors of the society, and have successively won the titles of "High Tech Enterprise of Henan Province ", "Specialized & Innovative Enterprise Certificate", "One Hundred Growing Private Enterprises of Zhengzhou City ", "High Quality Products of Henan Province", "Famous Brand Products of Henan Province", "E-commerce Demonstration Enterprise of Henan Province" and "Zhengzhou Technology Center" and other honors. With the style of “Diligence, Pragmatism, Conscientiousness and Preciseness”, Our ZK person adheres to “Sincere cooperation, First-class products and Perfect services”, so as to achieve harmonious, win-win and common development with our clients from home and abroad.
