High speed 60-80mm Welding Pipe Round Square Tube Making Machine With Fly Saw Cutting And Water Cooling

General information

This equipment is specially used for producingΦ8-Φ32mm,δ0.5-1.5 mm High-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe(δ≤1.2mm). The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.

Cutting device

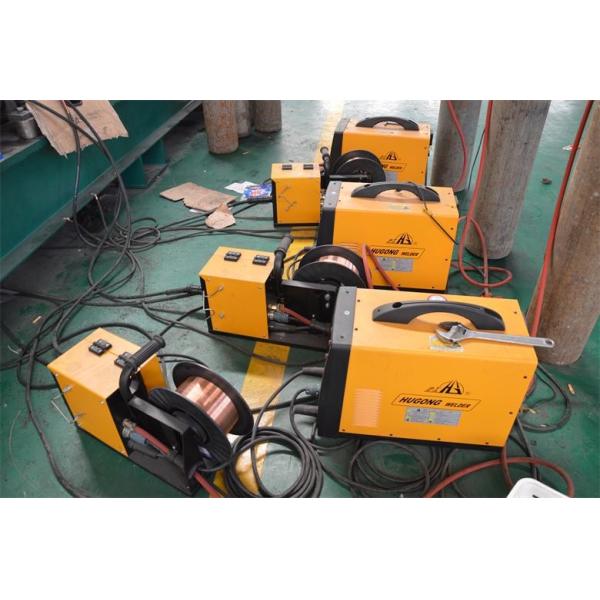

Welder device

Roll forming device

Applicable material

Dimension range of processing steel pipe

Introduction of Main Components

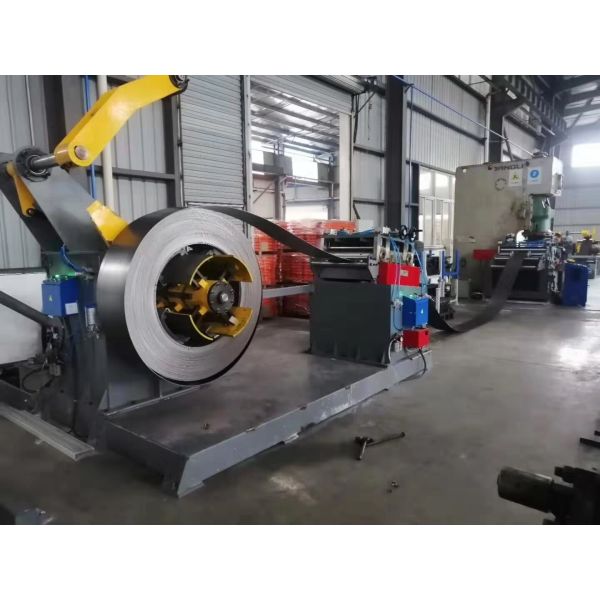

1. Decoiler:

Structure type: Double-side, 360°Rotation, manual expanding, which insures steel coil feed alternatively and go into accumulator freely.

2. Vertical Accumulator

3. Forming welding and sizing device

Feeding device

4. Computer saw

5. the out table

Computer saw cutting device

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
