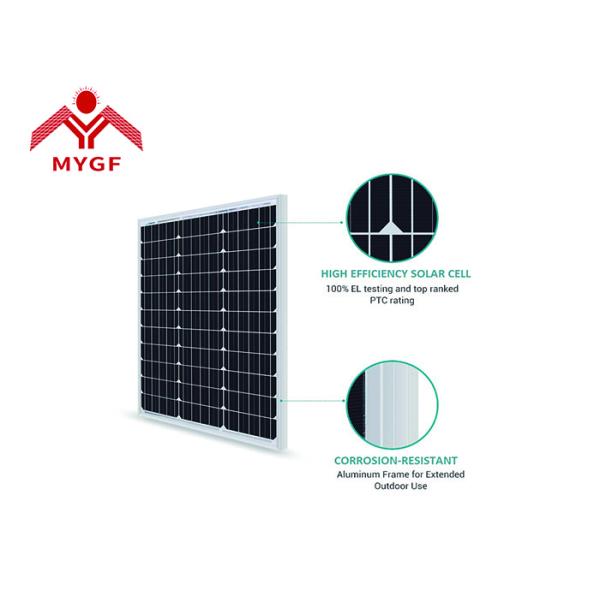

MYGF-50W-2 Monocrystalline Solar Panel Outdoor Camping Household
Anti aging
Monocrystalline Silicon Solar Cells
Solar cells made of monocrystalline silicon (mono-Si), also called
single-crystalline silicon (single-crystal-Si), are quite easily
recognizable by an external even coloring and uniform look,
indicating high-purity silicon.
Monocrystalline Solar Panels Advantages
Monocrystalline solar panels have the highest efficiency rates
since they are made out of the highest-grade silicon. The
efficiency rates of monocrystalline solar panels are typically
15-20%.
MYGF produces the highest efficiency solar panels on the U.S.
market today. Their E20 series provide panel conversion
efficiencies of up to 20.1%. MYGF has now released the X-series at
a record-breaking efficiency of 21.5%.
Monocrystalline Solar Panels Features
Monocrystalline silicon solar panels are space-efficient. Since
these solar panels yield the highest power outputs, they also
require the least amount of space compared to any other types.
Monocrystalline solar panels produce up to four times the amount of
electricity as thin-film solar panels.
Monocrystalline solar panels live the longest. Most solar panel
manufacturers put a 25-year warranty on their monocrystalline solar
panels.
Tend to perform better than similarly rated polycrystalline solar
panels at low-light conditions.
Specification:
| Model | Maxpower(W) | Dimension(mm) | Weight | Imp(A) | Vmp(V) | Isc(A) | Voc(V) |
| MY-5M | 5W | 320x200x17 | 0.8KG | 0.28 | 17.49 | 0.3 | 21.67 |
| MY-10M | 10W | 360x300x17 | 1.5KG | 0.57 | 17.49 | 0.61 | 21.67 |
| MY-25M | 25W | 540x340x25 | 2.0KG | 1.44 | 17.35 | 1.54 | 21.67 |
| MY-35M | 35W | 540x430x25 | 2.8KG | 2.10 | 17.50 | 2.24 | 21.67 |
| MY-50M | 50W | 630x540x30 | 3.2KG | 2.80 | 17.80 | 2.99 | 21.63 |
| MY-65M | 65W | 845x545x30 | 4KG | 3.61 | 18.00 | 3.86 | 21.63 |
| MY-70M | 70W | 760x668x35 | 5.2KG | 4.00 | 17.50 | 4.28 | 21.7 |
| MY-90M | 90W | 1200x540x35 | 6.8KG | 5.05 | 17.80 | 5.40 | 21.67 |
| MY-100M | 100W | 1200x540x35 | 8.5KG | 5.46 | 18.30 | 5.84 | 21.67 |
| MY-140M | 140W | 1480x680x35 | 8.5KG | 7.86 | 17.80 | 8.41 | 22.04 |
| MY-150M | 150W | 1480x680x35 | 11.5KG | 8.42 | 17.80 | 8.91 | 42.5 |
| MY-185M | 185W | 1580x808x40 | 11.5KG | 5.14 | 36.00 | 5.45 | 31.00 |
| MY-200M | 200W | 1580x808x40 | 15.5KG | 5.47 | 36.80 | 5.85 | 36.30 |
| MY-245M | 245W | 1640x990x40 | 15.5KG | 8.39 | 29.20 | 8.97 | 36.90 |
| MY-280M | 280W | 1960x990x50 | 19.5KG | 7.74 | 36.20 | 8.12 | 43.20 |
| MY-300M | 300W | 1960x990x50 | 22.5KG | 8.33 | 36 | 8.56 | 44.3 |
FAQ
Q1. Are you factory or trade company?
A1: We are solar panel factory with over 10 years history.
Q2. Can we customize the size of the solar panel?
A2: Yes, we accept customized order with MOQ 100 pcs
Q3. Can I have sample order for solar products?
A3: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q4. What kind of certification do you have ?
A4: Our solar panels are approved by CE,TUV, IEC61215,
IEC61730,etc.
Q5. What is the warranty for the solar panel?
A5: 10 years warranty on materials and workmanship; 10 years on
power to be above 80%.
Q6. What is the terms of payment?
A6: T/T, L/C; 30% for deposit, the balance 70% before shipment.
Q7. What is the delivery time?
A7: Normally 5-20days after receiving deposit.
Q8. What countries or areas do you sell your products?
A8: So far we have supply our solar products to many overseas
countries like Vietamn, Thailand, Philippines, Malaysia, Australia
and other Asian counttires, Middle East, Morocco, Sudan and other
African countries, Mexico, Panama and other American countires and
so on.
