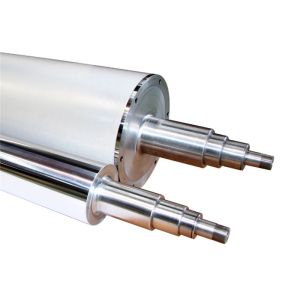

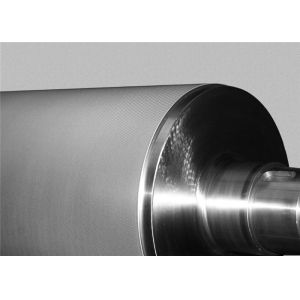

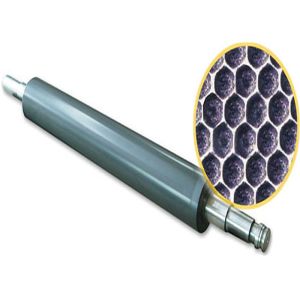

Tungsten Coating A Flute Corrugated Roll

    Buy cheap Tungsten Coating  A Flute Corrugated Roll from wholesalers

    Buy cheap Tungsten Coating  A Flute Corrugated Roll from wholesalers
    • Buy cheap Tungsten Coating  A Flute Corrugated Roll from wholesalers
    • Buy cheap Tungsten Coating  A Flute Corrugated Roll from wholesalers
    • Buy cheap Tungsten Coating  A Flute Corrugated Roll from wholesalers
    • Buy cheap Tungsten Coating  A Flute Corrugated Roll from wholesalers

    Tungsten Coating A Flute Corrugated Roll

    Ask Lasest Price
    Brand Name : HUATAO
    Price : Price accept negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20 Sets per Month
    Delivery Time : 60days
    Model Number : CR-001
    • Product Details
    • Company Profile

    Tungsten Coating A Flute Corrugated Roll

    Tungsten Coating A Flute Corrugated Roll


    Tungsten Coating A Flute Corrugated Roll Products Description:


    100 - 4000mm Lentgh Corrugating Roll For Corrugated Carton Making Machine, as the most important part of corrugated cardboard production line, whose abrasion resistance and service life is the main technical index for measuring quality and economical efficiency, directly influences the economic benefits of manufacturer for corrugated cardboard .

    Tungsten Coating A Flute Corrugated Roll Specification:


    1.Material :Special 48CrMo alloy steel fine forgings

    2.Hardness:>HRC58 Quenching layer depth :5-7mm

    3.Coating Thickness 0.06and 0.07mm Tungsten Coating Thickness

    4.Surface plating: Micro hardness HV900-1250

    5.Combination hardness >75MPa

    6.Visible optical porosity <1%

    7.The optimization of economic type design

    8.High-speed Corrugating Rolls :twice fine grinding

    ♦ High limit deviation of tooth≤0.02mm

    ♦ Limit deviation of tooth thickness≤0.015mm

    ♦ Limit deviation of tooth profile±0.02mm

    ♦ Tooth top circle≤0.025mm

    ♦ The limit deviation of the equality of the tooth flank face≤0.02mm

    ♦ Roughness Ra ≤0.4μm

    ♦ The limit deviation of tooth±20″

    ♦ The height limit deviation of middle and high rollers is±5%


    Tungsten Coating A Flute Corrugated Roll Flute Type


    Flute TypeFluteTeeth/300mmHeight of Flute
    GUV185±120.5-0.65
    NUV200±150.4-0.5
    OUV267 or design0.25-0.35

    Tungsten Coating A Flute Corrugated Roll Delivery by sea


    Use non-fumigation wooden box, it's convenient to customs clearance.Could save customers more time.
