Geosynthetics Material Fiberglass Reinforced Geogrid For Strengthening Of Embankments

Add to Cart

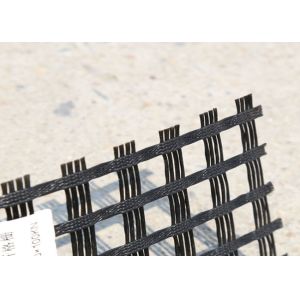

Geogrid Reinforcing Fabric Fiberglass reinforced Geogrid for strengthening of embankments

1, Fiberglass reinforced Geogrid introduction:

Fiberglass geogrid fiberglass rovings as the main raw material, Using the network structure of certain

woven material made of ,To protect the glass fiber and improve overall performance, through a special

coating treatment process and the formation of new fine geotextile substrate.

2, Fiberglass reinforced Geogrid Feature:

(1) High tensile strength, low elongation - Fiberglass geogrid is a glass fiber as raw material,has a

high resistance to deformation, elongation at break of less than 3%.

(2) No long-term creep - as a reinforcing material, possess the ability to resist deformation in the case

of longterm creep resistance load that is extremely important, glass fibers do not creep occurs, which

ensures that the product can maintain long-term performance.

3, Fiberglass reinforced Geogrid Application

(1)applies to all kinds of roads, railways, airports enhance road embankment reinforced.

(2)the foundation for large parking garages and other permanent load and terminal enhancements.

(3)slope protection for railways, highways.

(4)applies culvert enhancement.

(5)applies to one-way stretch geogrid reinforced soil slopes after secondary

(6) enhanced further enhance the soil, prevent soil erosion.mining, tunnel reinforcement.

4, Fiberglass reinforced Geogrid Speicification

Fiberglass geogrid technological standard(GB/T 21825-2008)
specification		FGGa 30×30	FGGa 50×50	FGGa 60×60	FGGa 80×80	FGGa 100×100	FGGa 120×120	FGGa 150×150	FGGb 50×50	FGGb 80×80	FGGb 100×100
Mesh center distance(mm)	Longitudinal	25.4±3.8							12.7±3.8
Mesh center distance(mm)	Crosswise	25.4±3.8							12.7±3.8
breaking strength(kn/m)	Longitudinal	30	50	60	80	100	120	150	50	80	100
breaking strength(kn/m)	Crosswise	30	50	60	80	100	120	150	50	80	100
Breaking Elongation(%)	Longitudinal	4	4	4	4	4	4	4	4	4	4
Breaking Elongation(%)	Crosswise	4	4	4	4	4	4	4	4	4	4
Width(m)		1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m	1m-6m

Geogrid Reinforcing Fabric Fiberglass reinforced Geogrid for strengthening of embankments application:
