CATV EPON ONU Optical Network Terminal GE / FE LAN Ports For FTTH

Name: CATV EPON ONU Optical Network Terminal GE FE LAN Ports For FTTH
Brand: Sopto
Price: 1 USD

Ask Lasest Price
Brand Name :	Sopto
Delivery Time :	15-20 working days
Payment Terms :	T/T; L/C; Paypal
Model Number :	SPU-E4100A-HR etc

Add to Cart

Product Details
Company Profile

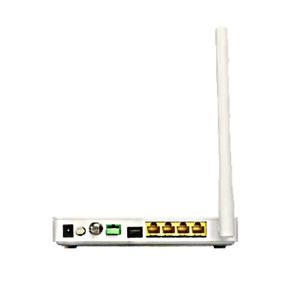

CATV EPON ONU Optical Network Terminal GE / FE LAN Ports For FTTH

4*10/100/1000M Ethernet Interface CATV EPON ONU Optical Network Terminal for FTTH

CATV EPON ONU series is fiber to the home multi-service access EPON ONU. It’s based on the mature, stable, high cost performance EPON technology and has gigabit Ethernet switching, WDM and HFC technology.Single Fiber series adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm. Dual Fiber series adopts dual fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .

Features

● GE or FE LAN ports

● In compliant with IEEE802.3ah Standard

● Wi-Fi type optional,Wi-Fi series meet 802.11 n/b/g technical standards

● Single Fiber,Built-in FWDM or Dual fiber

● Support AGC function

● Support port flow control

● Support ACL and SNMP to configure data packet filter flexibly

Application

Applications in FTTH

Ordering Information

Brief Information	Product Model	Descriptions
Single Fiber,Built-in FWDM
4FE+CATV Single Fiber	SPU-E4100A-HR	4*10/100M Ethernet interface,1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm～0dBm, support AGC function, Plastic casing, external power supply adapter
4FE+CATV+WIFISingle Fiber	SPU-E4100AW-HR	4*10/100M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm～0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter
4GE+CATV Single Fiber	SPU-E4200A-HR	4*10/100/1000M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm～0dBm, support AGC function, Plastic casing, external power supply adapter
4GE+CATV+WIFI Single Fiber	SPU-E4200AW-HR	4*10/100/1000M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm～0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter
Dual Fiber
4FE+CATV Dual Fiber	SPU-E4101A-HR	4*10/100M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm～0dBm, support AGC function, Plastic casing, external power supply adapter
4FE+CATV+WIFI Dual Fiber	SPU-E4101AW-HR	4*10/100M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm～0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter
4GE+CATV Dual Fiber	SPU-E4201A-HR	4*10/100/1000M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm～0dBm, support AGC function, Plastic casing, external power supply adapter
4GE+CATV+WIFI Dual Fiber	SPU-E4201AW-HR	4*10/100/1000M Ethernet interface, 1 EPON interface, 1 HFC optical interface, Input optical power -18dBm～0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter
