Product Description
Plastic bottle granular juice drink filling line KLCGF32-32-12
Overview of Production Line:
★ The granular juice blending process is designed according to the
formula of the juice drink. Usually, the juice blending process is:
sugar preparation syrup, syrup filtration, concentrated juice
dilution, juice mixing tank,Vacuum degasser, Homogenizer,
UHT(Sterilization), CIP cleaning.
★ Drinking Water Treatment Equipment → Syrup pot → Syrup Filter →
juice mixing tank → Vacuum degasser → Homogenizer →
UHT(Sterilization) → Washing, Filling, Capping 3-in-1 Machine For
Filling Juice → Bottle Inverted Conveyor Sterilization → Spray
Water Sterilization.(85℃) → Labeling Machine Code printer → Shrink
wrap packing machine→ Finished Products
Granular Juice Processing System
The heating method can be steam heating, sugar melting pot,
ingredient tank and beverage heat preservation tank can be made
into three layers of heat preservation treatment, the outermost
layer is heat preservation cotton, the middle layer is steam layer,
and the latter layer is material, so the heating speed is fast, the
heat loss is small, and the cost can be greatly reduced, so a steam
boiler needs to be configured.

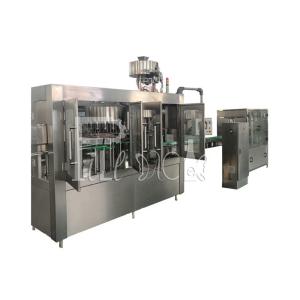

Washing, Filling, Capping 3-in-1 Machine For Filling Juice
This machine is used to produce granular juice for plastic bottle,
there is seperate particle filler, which can fill granule pulp or
particle, the machine combine rinser, juice filler, granule filler
and capper in one unit, suitable to produce granular juice, dairy
drink, tea drink, flavor drink, and other non-carbonated drink.
Bottle Inverted Conveyor Sterilization.
1, The inverted bottle sterilization machine is a special equipment
for the hot filling production line which is developed according to
the process characteristics of the hot filling production line and
needs to be developed by itself.
2, The temperature of the whole process is controlled between
65-85℃. When passing through the bottle pouring sterilizer, the
bottle will turn 360 degrees. The inverted bottle sterilizer use
the high temperature of the product to sterilize the bottle cap in
a specified time(28～30second), soften the seal of the cap, and
improve the cap and bottle.
| Washing Filling Capping 3-in-1 in the Granular Juice filling line |
| Model | KLCGF12-12-4 | KLCGF18-18-6 | KLCGF24-24-8 | KLCGF32-32-12 | KLCGF40-40-12 |
| Capacity | 4000BPH | 5000-7000BPH | 8000-12000BPH | 12000-15000BPH | 15000-20000BPH |
| Bottle shape | (Bottle Diameter):50-110mm (Height):160-320mm |
| PET bottle | PET screw |
| Filling precision | ≤+/-1% |
| Filling pressure | 0.15-0.35MPa | 0.15-0.35MPa | 0.15-0.35MPa | 0.15-0.35MPa | 0.15-0.35MPa |
| Rinsing pressure | 0.2-0.25MPa | 0.2-0.25MPa | 0.2-0.25MPa | 0.2-0.25MPa | 0.2-0.25MPa |
| Power | 4.4Kw | 4.4Kw | 5.2Kw | 6.2Kw | 7.8Kw |
| Size(mm) | 2100*1750*2200 | 2800*2150*2300 | 3100*2450*2300 | 3800*2800*2500 | 4100*3000*2500 |
| Weight(Kg) | 3500 | 5000-7000 | 8000-12000 | 12000-15000 | 15000-20000 |
|
| If you need non-granular juice filling line, please check them on
our website or contact the sales consultant directly. |
Other machines in the production line
★ Water treatment system
★ Vacuum degasser

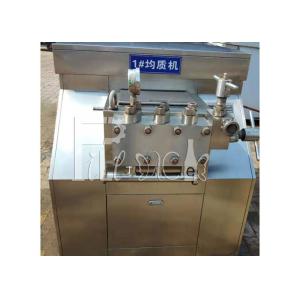

★ Homogenizer
★ Labeling machine with code printer
★ Film shrinking packing machine
