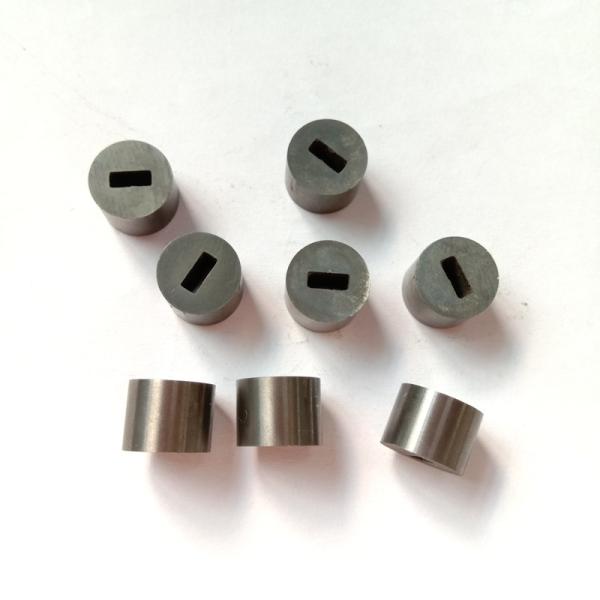

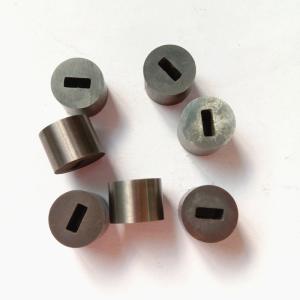

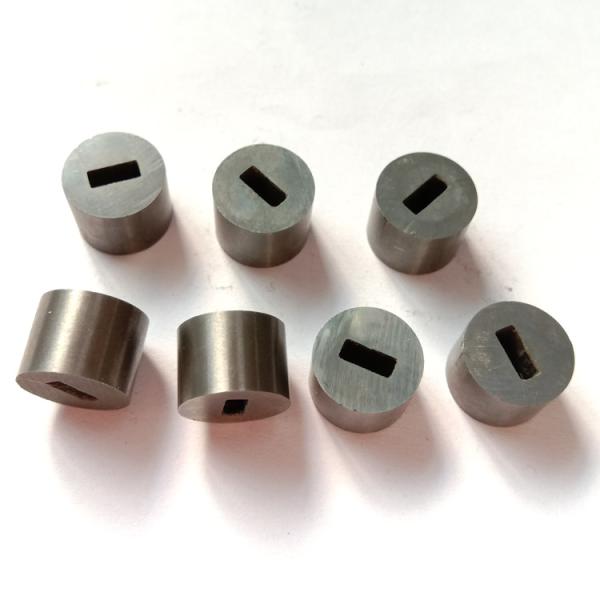

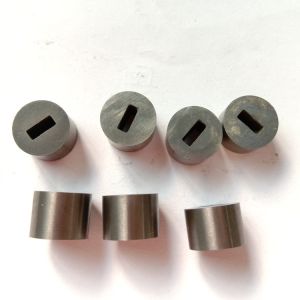

K20 High Wear Resisitance Tungsten Carbide Nozzles
Recommen Grade information
| Grade | Density(g/cm3) | Hardness(HRA) | TRS(MPa) | grain Size | Composition |
| YG6X | 14.95 | 92 | 1800 | 0.6um | 6%Co+94% WC |
| YG6 | 14.95 | 90 | 1900 | 0.8-1.2um | 6%Co+94% WC |
| YL10.2 | 14.6 | 92.8 | 4000 | 0.6-0.7um | 10%Co+90% WC |
| YG10X | 14.5 | 93 | 3500 | 0.4-0.6um | 10%Co+90% WC |
Unique advantage of tungsten carbide water jet nozzles
1. Adopt supermicron grain size, which can result in better
wear-reseistance and longer life span.
2. Super oxygen-resistant
3. Using HIP sintering which can increase the performance of
carbide greatly.
4. Precision Ground and polished
Detail information:
1. Size: Φ10**5mm( customized is also available)
2. Material: tungsten carbide(WC+Co)
3. Hardness: HRA92.5-93
4. Application: waterjet cutting head
Physic character of tungsten carbide water jet nozzles
1. Long life span: 80 hrs for finish grinding, 140hrs for rough
grinding
2. Density:15.45g/cm3 —15.60 g/cm3
3. Hardness:2000Mpa-2400Mpa
4. the tolerance of polish and ground can be +0.005/-0.005m
high hardness and excellent wear resistance tungsten carbide nozzle
Carbide water jet nozzle made from high hardness tungsten carbide,
the life time is 10 times longer than ceramic nozzles. They are
good for cleaning, even small areas: weldments, grillwork, and
railings. It can be used with water from a tap or with rust
inhibitors introduced through any simple pump, no special equipment
is required. If your needed a non-standard nozzle, we also can
produce it for you.
Application of tungsten carbide nozzles
1.Metal cutting
2.Ceramic cutting
3.Stone cutting
4.Glass cutting
