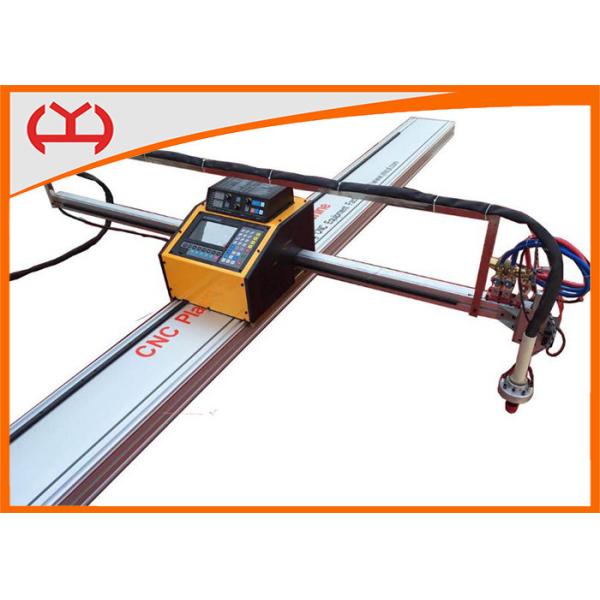

Automated Portable CNC Plasma Cutter / Flame Cutting Machine For
Metal Processing
Description:
1. Machine design simple.
2. Cantilever structure, welding after the vibration aging
treatment to eliminate stress, so that in the long-term use of no
deformation.
3. Take the initiative to end beam: vertical track for the
introduction of automatic clamping device-oriented structure and
there are no eccentric clamping structure, relying on automatic
detachable power-oriented structure to make it two in the track
combined with the smooth running of the Department will not have a
wheel clamp tight or lax-phenomenon.
4. All the equipment looks to see, such as steel, screws, using
black or chrome handle.
5. Spray machine to use more advanced types of paint, the color
demand on users.
Competitive Advantage:
1. Smart design,can be moved everywhere you need.
2. Competitive price than the table type CNC machine.
4. Smart cut, can cut any shape from AutoCad.
5. Control systemsupport English,Russian and Spanish.
6. Fast dispatch, can distapcth in 3-7 workdays.
Technical Parameters for Portable CNC Cutting Machine:
| 1 | Cutting shape | any shapes |
| 2 | LCD Display Dimension | 7.0Inches |
| 3 | Effective Cutting Width (X axis) | 1500mm |
| 4 | Effective Cutting Length (Y axis) | 6000mm |
| 5 | Cross Beam Length | 2000mm |
| 6 | Longitudinal Rail Length | 6500mm |
| 7 | Cutting Speed | 0-4000mm per minute |
| 8 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 9 | Flame Cutting Thickness | 5--200mm |
| 10 | Drive Mode | single-side |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | Height regulating device | Arc voltage height control (THC) or Electric adjustable high |
| 14 | File transmission | USB transmission |
| 15 | Gas Pressure | Max. 0.1Mpa |
| 16 | Oxygen Pressure | Max.0.7Mpa |
| 17 | Cutting Gas | Acetylene/Propane |
| 18 | Plasma Power Source | Yahong cut-100A,cut-130A, cut-200A or other |
| 19 | Plasma Air | Only pressed Air |
| 20 | Software | FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types
etc.) |
| 21 | Plasma Air Pressure | Max. 0.8Mpa |
| 22 | Cutting precision | ±0.5mm National standard JB/T10045.3-99 |
| 23 | Control accuracy | ±0.01mm |
| 24 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 25 | Rated Power Supply | 200W |
| 26 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Our Services:
1. Offering the specification of the machine ,1 years warranty.
2. English software, user manual and operation .
3. 24 hours technical support by e-mail, calling service If you
have any problems ,we will within 12 hours to solve it .
4. If you need any component of the machine later ,we will provide
the best price for you.
5. 7 working days to produce the machine ,in the meanwhile , we
will report the production process in time.
