500w Fiber Laser Cutting Machine For Carbon Steel , Aluminum Metal
Cutting
Gantry dual drive, adopting advanced gear rack transmission
structure. Equipped with grinding gear and rack, and through the
precision collimator one time metering assembly. The machine will
secure long-term high cutting speed, high precision transmission.
The machine table machined by large planomiller, with high
temperature annealing twice, and high strength complete welding,
customer will have long-term payback.
Competitive Advantage:
1. Double drive structure, stable and reliable movement.
2. Double cutting table, fast exchange speed, loading and unloading
conveniently, highly efficiency.
3. Machine protected by sheetmetal, safe.
4. Independent R&D, manufacturing machinebody special
processing technology,high precision, stable and reliable , long
service life.With high response and high precision servo motor
5. High precision laser cutting head, imported optical lens,
focusing on fine,convenient adjustment and perfect cutting
6. The CNC system operation is simple and easy to learn, low
requirements for operators.
7. The international first-class quality fiber laser, long history of
industrial applications,maintenance easily, stable and reliable.
Technical Parameters for Fiber Laser Cutting Machine :
Item | Technical Parameters |
Type | 3015 | 4020 | 6020 |
Max Cutting Size(mm) | 3000×1500 | 3000×2000 | 6000×2000 |
Max Height of the Workpiece(mm) | 110 | 110 | 110 |
Effective Travel | X axis(mm) | 3100 | 4100 | 6100 |
Y axis(mm) | 1600 | 2100 | 2100 |
Z axis(mm) | 150 | 150 | 150 |
Positional Accutacy | X axis(mm/m) | ±0.03 | ±0.04 | ±0.05 |
Y axis(mm/m) | ±0.03 | ±0.04 | ±0.05 |
Z axis(mm/m) | ±0.01 | ±0.01 | ±0.01 |
Repeated Positioning Accuracy | X axis(mm) | ±0.02 | ±0.02 | ±0.03 |
Y axis(mm) | ±0.02 | ±0.02 | ±0.03 |
Z axis(mm) | ±0.005 | ±0.005 | ±0.005 |
Repid Positioning Speed | X axis(m/min) | 120 | 120 | 120 |
Y axis(m/min) | 120 | 120 | 120 |
Z axis(m/min) | 30 | 30 | 30 |
Accelerated Speed(G) | X axis(G) | 1.3 | 1.3 | 1.3 |
Y axis(G) | 1.3 | 1.3 | 1.3 |
Working Platform Loading Weight(Kg) | 1200 | 1800 | 2400 |
Working Platform Raising Time(S) | 15 | 15 | 15 |
Working Platform To Exchange Time(S) | 20 | 22 | 25 |
The Laser Power(W) | 500/800/1000/1500/2000/3000/4000 |
The Power Consumption of The Machine Tool(Kwh) | 9.45 | 10.25 | 10.25 |
Total Weight(T) | 9.65 | 11.3 | 13.8 |
Boundary Dimension L×W×H(mm) | 7861×3225×1600 | 12150×3225×1600 | 15260×3225×1600 |
FAQ:
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the
size of your material?(Better show me your product picture)
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost.
After production,we'll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have
CE,CO,ISO,FDA certificates,have exported to Europe,South
America,Arab,Asia,Russia,Spain,Australia and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to
operate?
There are english manual or guide video that show how to use
machine.
If there is still have any question, please contact us by e-mail /
skype/ phone /trademanager online service at any time.
MOQ ?
1 set machine, mixed order is also welcomed.
Cutting Samples:

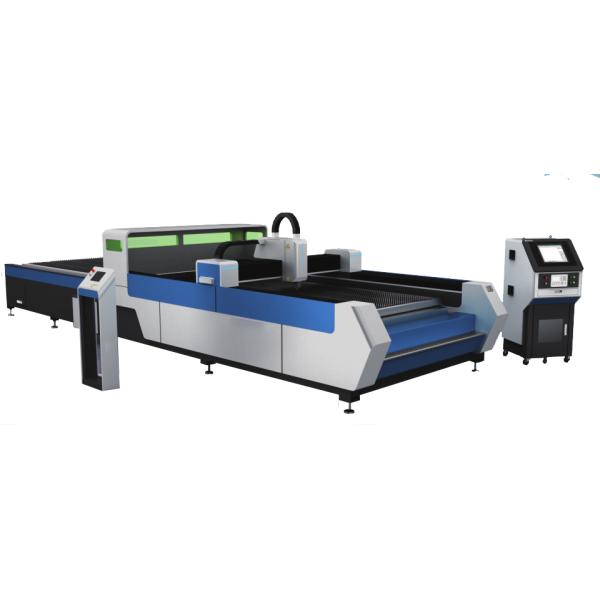

Fiber Laser Cutting Machine:
