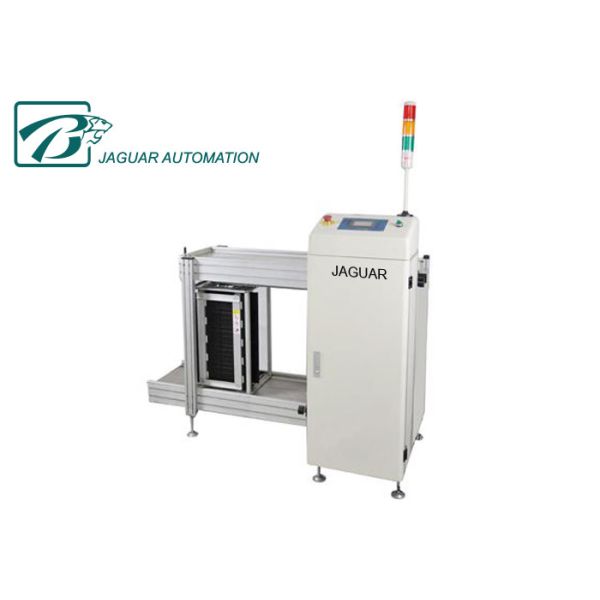

JAGUAR-330LD Loader,Automatic SMT Assembly Line PCB Magazine
Loader,pcb conveyor,SMD Assembly Machine
Product instructions:
1. Strong,firm and stable design.
2. Effective design ensures no PCB breakage guaranty.
3. Aluminum structure, Bottom weight design, not easy to shift.
4. increased load without interference.
5. Minimize clearance between conveyor.
6. Compatible SMEMA interface
| Model | Overall size | PCB | Magazine |
| JAGUAR-330LD Loader | L1400*W860*H1200±30mm | L450*W330mm | L460*W400*H565mm |
Features
1)Special aluminum guide rails and special type plover ESD
antistatic plastic chain
2)90 w brake motor drive with ball screw make Magazine, step into
the elevator
3)Transmission motor adopts 15 w produce constant speed motor
production
4)Air TAC dynamic clamp structure
5)Direction: right to left/left to right
6)Lift platform pitch:10,20,30,40
7)Transfer height:920±30
8)Mitsubishi PLC programmable controller control
9)Adopts panasonic and omron photoelectric control
10)Function with automatic upper plate
11)Control panel to true color touch display control panel
12)Air TAC dynamic clamp structure (push plate cylinder position
with screw adjustment)
13)Power:220V 50HZ
14)Air:0.4-0.6MPa
15)Full magazine quantity:50PCS
16)A set of electrical box
