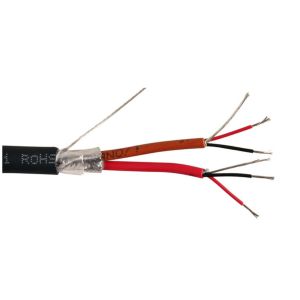

Professional Shielded Instrument Cable Individual / Overall Copper
Wire Braiding
Instrument cable features
1. Conductor: Plain annealed copper, Copper/Copper tinned
2. Sizes: 0.5 mm² solid, 1.0 mm² solid, 0.5 mm² flexible, 0.75 mm²
flexible or 1.5mm²stranded
3. Insulation: XLPE/PE/PVC
4. Color code: black / white / red; with numbered tape under
separator tape of the triple screen
5.Triple screen: 24 µm aluminium / PETP tape over tinned copper
drain wire, 0.5 mm²
6. Wrapping: at least 1 layer of plastic tape
7. Collective screen: 24 µm aluminium / PETP tape over tinned
copper drain wire, 0.5 mm²
8. Bedding: zero halogen flame retardant compound LSZH, black
9. Armour: Steel Wire Armored, Galvanized Round Steel Wire, Without
Armor
10. Outer sheath: zero halogen flame retardant compound LSZH, black
or blue for intrinsically safe systems
11. Shield: Copper Wire Braid, Al-foil Individual and Overall
Screen
Use condition
The cable is approved to operate upon fixed-installation or
moveable using in ambient temperature from -40 ℃ to 50 ℃ , relative
humidity not larger than 80%and operating temperature of core not
higher than 70 ℃ as well as avoiding direct high-temperature
radiation or contact. The temperature shall never less than 0℃ when
the cable being laid. Permissible bending radius:not less than 6
times of overall diameter for unarmored cable;not less than 12
times of overall diameter for armored or screened cable;not less
than 6 times of overall diameter for screened flexible cable.
PACKING AND SHIPPING
We are capable of meeting the strictest delivery schedules
according to per purchase order. Meeting the deadline is always the
top priority as any delay in the delivery of cable can contribute
to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils.
Cable ends are sealed with BOPP self-adhesive tape and
non-hygroscopic sealing caps to protect the cable ends from
moisture. The required marking shall be printed with a
weather-proof material on the outsides of drum according to
customer's requirement.
