    Flange Connection Power Distribution Poles For Power Transmission And Distribution Line

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    Flange Connection Power Distribution Poles For Power Transmission And Distribution Line

    Electrical Post Steel Electric Pole Sheet Metal Fabrication for Power Transmission and Distribution Line

    Product Description:

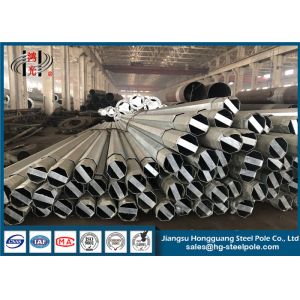

    The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.


    Product Specification:

    Products
    • Electrical Post Steel Electric Pole Sheet Metal Fabrication for Power Transmission and Distribution Line
    Application
    • Power Transformation
    Voltage Grade
    • 69KV-220KV
    Once Forming
    • 16m Once forming without joint
    Thickness
    • 3.0mm, 3.5mm, 4.0mm
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Life Period
    • More than 25 years, it is according to installing environment

    Galvanization

    • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Product Advantages:

    The hot-dip galvanization technique could protect steel poles from corrosion for as long as 50 years.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilized to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


    Application Scope:

    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


    Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.

    * The Loading Pcs of Each Container could be calculated according to client's specification and data.

    Manufacturing:

    Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.


    Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.
    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
    Telphone: +86 510 878 441 56
    Fax: +86 510 878 435 28
    Trade manager ID: cnhgsteelpole
    Skype: tangjia870124

    Company youtube link: https://youtu.be/C9sHcnm3RKI

    Please feel free to contact us!
