Crank crankshaft precision grinding CBN ceramic grinding wheel
AUTOFOR Σ grinding wheel is very suitable for the grinding of the
parts that are prone to grinding burns (the parts that are not
easily covered by grinding oil such as the grinding of the
crankshaft shoulder).
The linear velocity of the grinding wheel is generally 80m / s-150m
/ s.
Matching Grinder:
It can support imported CNC high-precision CBN dedicated crankshaft
grinders, such as CBN grinding wheel dedicated crankshaft grinders
produced by companies such as Naxos, Junker, and Landis in the UK.
Ordering Example: Ceramic Bonding Wheel
Abrasive type: particle size, binding agent, concentration,
hardness
Features
• AUTOFOR A's unique CBN grinding wheel can reduce grinding
resistance (power consumption).
• Can greatly reduce the occurrence of grinding burns, prolong the
life of the grinding wheel and improve the quality of the
workpiece.
Usage
Compared with previous grinding wheels
Grinding conditions
| Grinding wheel details | CB100M200VN1 |
| Processed products | SCM435(HRC48) |
| Grinding wheel size | 380D×16T×80×15U×4X |
| Evaluation wheel | (1)the last grinding wheel  (2)Σ grinding wheel |
Machined surface
Previous grinding wheels AUTOFORΣgrinding wheel
Processing capacity and power consumption
※ The index of the conventional grinding wheel is set to 1.0
Suppresses grinding burns during high-efficiency machining

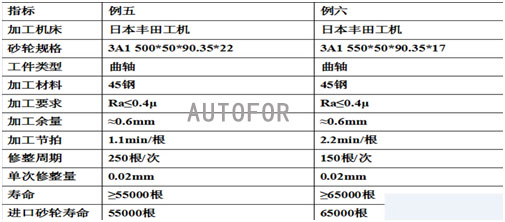

Applications 2:
陶瓷CBN产品型号

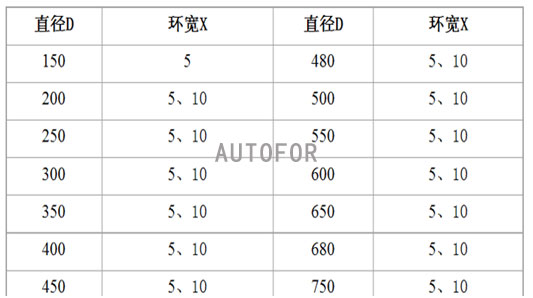

Ceramic CBN Product Specifications
T.H.J.U.ECan be customized according to customer requirements
