5/2 Way Pneumatic Solenoid Valve

5/2 Way Pneumatic Solenoid Valve

5/2 way pneumatic solenoid valves are usually used to actuate double acting pneumatic actuators, such as cylinders, rodless cylinders, grippers and rotary actuators. The valve body has five air connection ports, one of which is connected with air source, two with double-acting cylinders of actuators and two of which are exhaust ports.

Double-acting pneumatic actuator means that both sides of the cylinder piston need air pressure to push the piston. When there is pressure on one side of the piston and there is no pressure on the other side, the piston will move to the side with low pressure, and the cylinder will generate a thrust in one direction. When the pressure on one side of the piston with air pressure disappears, the pressure on the other side without pressure is added to the pressure of the source, and the piston will move back, and the cylinder generates a return thrust. By repeatedly switching the air pressure at both ends of the piston, the cylinder generates reciprocating motion. Dual-acting cylinder is not normal, so its position is uncertain without any compressed air.

Video of 4V420-15 Pneumatic Solenoid Valve:

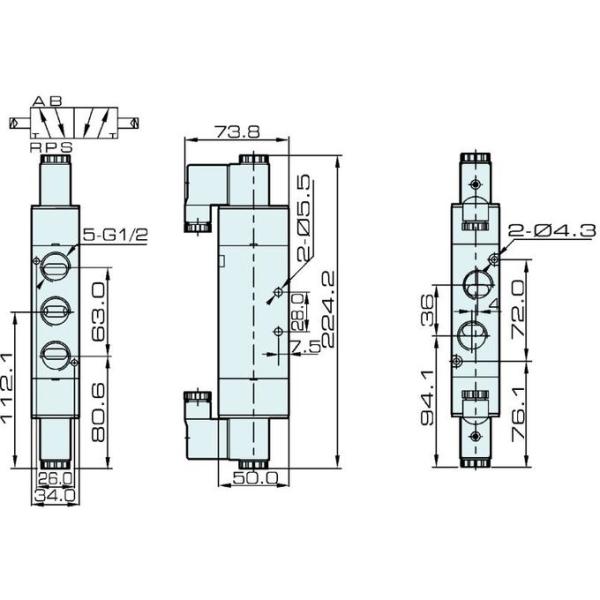

Dimension of 4V420-15 Pneumatic Solenoid Valve:

Technical Data of 4V400 Series Pneumatic Solenoid Valves:

Product Advantages:

1. Pilot-oriented mode: optional for internal or external.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central function for your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. It is available to form integrated valve group with the base to save installation space.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Serval standard voltage grades are optional.

More Pneumatic Solenoid Valves for you to choose:

Brando is a Pneumatic Solenoid Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).
