Medium To Hard Formation Impreg Bit , Core Drill Bits Concrete Bq Nq Hq Pq

Medium To Hard Formation Impregnated Diamond Core Drill Bit bq nq hq pq

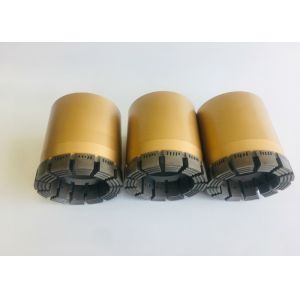

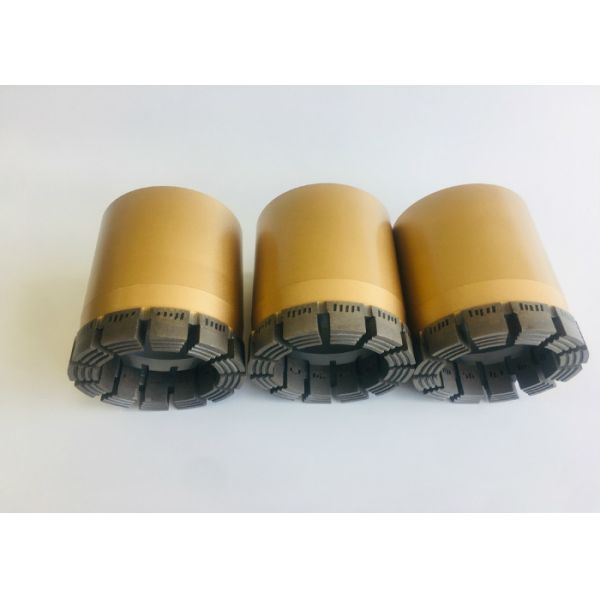

1. Impregnated diamond core bit

It’s most popular and commonly in the mineral’s exploration field and geology’s exploration field. Nowdays Our company produce three types(Master Series, Navigator Series, Junior Series) is recognized and recommended by more and more customers.
We preciously selected grades of top grade synthetic diamond are distributed in the depth of impregnated bit’s matrix series.The matrix layer of the crown contains a uniform distribution of these crystal that are embedded in a powdered metal bond, for improving lifespan and rate of penetration. The best record of our bit in south africa, single bit’s life span reach amazing 614.40m

In order to help the customer to select suitable bit and reduce customer’s workload, please follow below three steps to choice your bit.

{1}Assure diameter of Impregnated bit

{2}(1)Appropriate hardness of matrix(For some special or complicated ground,we will need to customize the diamond bits according to the actual

drilling conditions.)

Diaond bits crown shap and applications:

Flat : applicable to drilling different levels of hardness or abrasive formation , generally for single and dual tube drill bits.

Semi-round:good distribution of the diamond at bit face, adapt to a small broken or loose formation ,applicable to drilling medium-hard and hard formation .

Ladder:applicable to drilling medium –hard, broken or iterbedded formations, hole deviation can be prevented .

Serrated: applicable to drilling hard and dense formation , enhancing drilling rate.

Ladder serrated: applicable to medium –hard, have good stability during the drilling .

Gear Type: applicable to harder or dense formations, enhancing drilling rate .

Bottom Jetting : applicable to drilling sedimentary or metamorphic formations which containning more power ,high coring recovery rate and avoid excessive washout of core.

CGE Group Wuxi Drilling tools Co.,Ltd. (formerly named Wuxi drilling tool factory Co., Ltd) was founded in 1958, which is a state-owned leading enterprise . We’re the strategic partner of Atlas Copco ( Epiroc) since 2012.

Our company covers 120 mu and has a total assets around 20000 million Rmb. We have around 200 employees, including 10 technicians.

The main products we manufactured are listed as bellow:

1.China national standard coring drill system products

2.DCDMA standard products: A, B, N, H, Q series ,T2, T6 series impregnated diamond bit, PDC bit, surface set bit, drill rod, core barrel assembly, overshot, water swivel, hoist, circle wrench...

3.API standard drill rod for oil & water well drilling rod

4.Equipment for water conservancy, geology, unconventional oil & gas, and environment treatment, as well as doing relevant trades & services.

Warehouse

Quality Control Department

We have been strictly controlled the quality of our raw materials, and all of our steel metals

are from famous steel mills (factories).

Department Of Technology

Can innovate products following market trend based on customer’s need and valuable

feedback.

● Passed the certification of ISO 9001:2000 quality system.

● Passed OHSAS18000 Occupational Health and Safety Management System

   Certification .

● Have more than 70 items independent intellectual property patents.

Products are used in many national major projects
