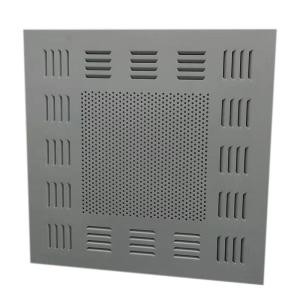

BFU ffu hepa filter with fan fan filter assembly fan coil filter
1.BFU Introduction
BFU is an upgrade and replacement of FFU and HEPA-BOX. To be
precise, it is also a modular terminal air supply device with its
own power and filtering effect.
BFU adopts modern large-area clean room safety theory. It sucks air
from the top and filters it out.
2.BFU application
The main purpose of BFU series products is to purify the air sent
into the clean area, and it is used in the construction of
large-scale clean rooms of class 10-300000 to meet the requirements
of clean environment.
The BFU is mainly installed on the clean area or work area ceiling
T-Grid or on the equipment machine, which has a wide range of uses.
3.BFU characteristics
1). Lightweight module structure design, suitable for installation
of ceiling keel (T-Grid) system of various manufacturers;
2). With dual overload protection high performance motor, high
static pressure, low noise, low energy consumption, can save
operating costs;
3). low noise, the source of scientific motor and air guide
structure design, so that the product's noise level is lower than
similar products;
4). The wind is even, the wind pressure spreads evenly and meets
the international standard IES-RP-CC002 ＋/－ 20%;
5). Low vibration, the total vibration rate is less than 1mm / s,
and the amplitude does not exceed 3um;
6). Flexible control mode, which can be used for single-speed,
three-speed, five-speed or stepless speed adjustment to adjust the
air volume, with operation / abnormal indicator / abnormal dry
contact,
Easy to monitor;
7). Various special specifications can be customized;
8). Pre-filters (G3-G4) and chemical molecular filters can be added
as required
9).Can be installed with abnormal indoor fault LED lights;
10). Differential pressure gauge and wind speed sensor can be
installed;
11).Can install 99 small monitoring systems or large remote central
monitoring systems
4. BFU Parameter
| Name | BFU |
| Size | W700*D700*H800mm |
| Flange size | 350*250mm(Side supply air or Top supply air).or round flange |
| Material | Powder coating or stainless steel or other steel |
| Air flow | 1500m³/h |
| Average wind velocity | 1m/s+-20% |
| Power | 130w |
| Power supply | 220V/50HZ |
| Noise | ≤60db(a) |
| Hepa size | 610*610*220mm |
| Hepa frame | Galvanized |
| Efficiency | Hepa 99.99% 0.3um |
| Media | Galvanized ultra-fine glass fiber |
| More information |
| Port | Shenzhen or Guangzhou |
| Terms of Payment | 30% by T/T in advance, the balance by T/T 7 days before the
delivery. |
| Trade Terms | EXW,FOB,CIF,C&F |
| Production Abililty | 18000-20000 Pcs per month |
| Main Export Market | America, Europe, Middle East,etc and have got a lot of acclaims
from the customers |
4.Others
1)BFU can be customized according to the specific requirements of
customers. BFU prices of different sizes, materials and
performances may be slightly different. welcome to contact us for
the price.
2)BFU is guaranteed for one year.
After the BFU is running, it should be checked regularly to test
whether its high-efficiency filter can work normally. If it does
not meet the requirements, it should be notified to the
manufacturer as soon as possible.
