| Brand Name : | Altrasonic |
| Model Number : | HS-D41S30 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000 units per month |
| Delivery Time : | 7 working days after received your payment |

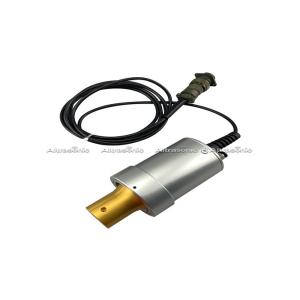

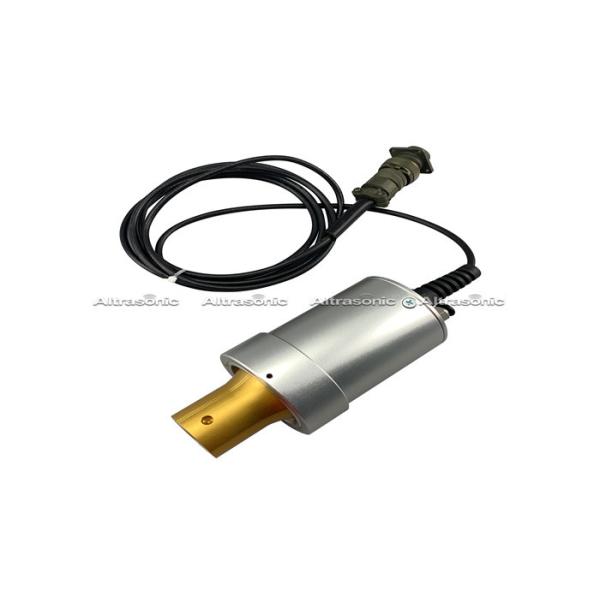

Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine
Description:
The Factory sale 20Khz replacement dukane 41s30 for welding or cutting
machine is applied to Dukane type ultrasonic welding machine.The transducer
converts high-frequency electrical energy into high-frequency
mechanical vibrations. And it contains several piezoelectric
ceramic discs sandwiched under pressure between two metal blocks.
Between each disc is a thin metal plate, which forms the electrode.
When a sinusoidal electrical signal is fed to the transducer via
the electrodes, the discs expand and contract, producing axial
vibrations.
Specifications:
| Model | HS-D-41S30 |
| Frequency | 20 khz |
| Output power | 1000 watt - 3000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 11000 pf |
| Amplitude | 20 um |
| Application | welding machine |
Applied Range:
Detailed Images:



|
