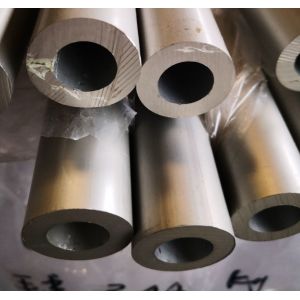

2.78 G/Cc Density 2024 Aluminium Seamless Pipe With Corrosion Resistance

    Buy cheap 2.78 G/Cc Density 2024 Aluminium Seamless Pipe With Corrosion Resistance from wholesalers

    Buy cheap 2.78 G/Cc Density 2024 Aluminium Seamless Pipe With Corrosion Resistance from wholesalers
    • Buy cheap 2.78 G/Cc Density 2024 Aluminium Seamless Pipe With Corrosion Resistance from wholesalers
    • Buy cheap 2.78 G/Cc Density 2024 Aluminium Seamless Pipe With Corrosion Resistance from wholesalers

    2.78 G/Cc Density 2024 Aluminium Seamless Pipe With Corrosion Resistance

    Ask Lasest Price
    Brand Name : HUANYU
    Model Number : HYST2024T3
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 80 Metric Tons Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    2.78 G/Cc Density 2024 Aluminium Seamless Pipe With Corrosion Resistance

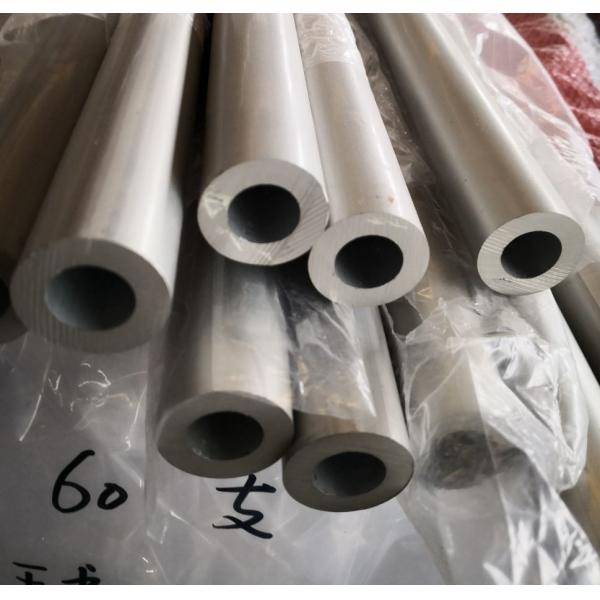

    6M Long Corrosion Resistance 2024 Seamless Aluminum Tubing With High Strength


    Diameter: 32mm

    Wall Thickness: 7mm

    Length: 6meters

    Availability: 300 metric tons per month


    2024 seamless aluminum tubing

    is heavily utilized in aircraft applications due to good machining characteristics and higher strength than either 2014 or 2017. Cold formability is considered fair, yet it is one of the most popular alloys for high strength tubing requirements because of the superior grain structure that can be obtained.


    Physical Properties

    MetricEnglishComments
    Density2.78 g/cc0.1 lb/in³AA; Typical

    Mechanical Properties
    Hardness, Brinell4747AA; Typical; 500 g load; 10 mm ball
    Ultimate Tensile Strength186 MPa27000 psiAA; Typical
    Tensile Yield Strength75.8 MPa11000 psiAA; Typical
    Elongation at Break20 %20 %AA; Typical; 1/16 in. (1.6 mm) Thickness
    Elongation at Break22 %22 %AA; Typical; 1/2 in. (12.7 mm) Diameter
    Modulus of Elasticity73.1 GPa10600 ksiAA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus.
    Ultimate Bearing Strength345 MPa50000 psiEdge distance/pin diameter = 2.0
    Bearing Yield Strength131 MPa19000 psiEdge distance/pin diameter = 2.0
    Poisson's Ratio0.330.33
    Fatigue Strength89.6 MPa13000 psiAA; 500,000,000 cycles completely reversed stress; RR Moore machine/specimen
    Machinability30 %30 %0-100 Scale of Aluminum Alloys
    Shear Modulus28 GPa4060 ksi
    Shear Strength124 MPa18000 psiAA; Typical

    Electrical Properties
    Electrical Resistivity3.49e-006 ohm-cm3.49e-006 ohm-cmAA; Typical at 68 Degrees F

    Thermal Properties
    CTE, linear 68 Degrees F23.2 µm/m- Degrees C12.9 µin/in- Degrees FAA; Typical; Average over 68-212 Degrees F range.
    CTE, linear 250 Degrees C24.7 µm/m- Degrees C13.7 µin/in- Degrees FAverage over the range 20-300 Degrees C
    Heat Capacity0.875 J/g- Degrees C0.209 BTU/lb- Degrees F
    Thermal Conductivity193 W/m-K1340 BTU-in/hr-ft²- Degrees FAA; Typical at 77 Degrees F
    Melting Point502 - 638 Degrees C935 - 1180 Degrees FAA; Typical range based on typical composition for wrought products 1/4 inch thickness or greater. Eutectic melting is not eliminated by homogenization.
    Solidus502 Degrees C935 Degrees FAA; Typical
    Liquidus638 Degrees C1180 Degrees FAA; Typical

    Processing Properties
    Annealing Temperature413 Degrees C775 Degrees F
    Solution Temperature256 Degrees C493 Degrees F
