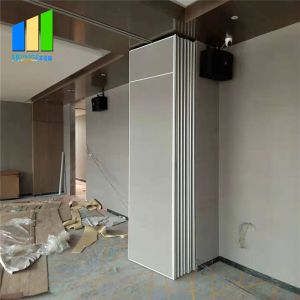

Folding Moving Wooden Door Removable Sound Proof Partition Wall for
Church Hospital
What is the difference between a movable sound proof partition and
a solid wall?
Nowadays some people gradually reduce the use of solid walls while
using more and more movable partitions.
May be some people are confusing that what is the difference
between a movable sound proof partition and a solid wall? The
movable sound proof partition is a little expensive, why we need to
use it but not building a solid wall? Here is the difference:
1. The biggest difference between movable sound proof partition
wall and solid wall is that it is convenient for disassembly and
installation and does not have the function of bearing weight, but
it is very convenient to belong to non-load-bearing movable
partition wall.
2. The movable sound proof partition wall is generally the same as
the ordinary wall, but it is detachable and reassembled, which is
different from the traditional wall. That is to say, the "movable
partition wall" is reusable, they are sliding, movable and easy to
operate. They are is convenient and flexible to use, while the
solid wall is permanently fixed.
3. The movable sound proof partition wall is light in weight, high
in strength, moderate in thickness, easy to install and reusable,
and has the characteristics of sound insulation, fire prevention,
moisture resistance and environmental protection.
4. The movable sound proof partition wall is represented by the
installation track, the track and suspension wheels are perfectly
combined, and the top is treated with special sound-proof slat.
5. The solid wall is a simple one, normally in white color. But the
movable sound proof partition wall can be colorful, there are more
than 100 colors to choose. And there are different surface to
choose, we also can put the favorite drawing onside the based
board.
Do you know any other difference between the movable sound proof
partition wall and a solid wall? What is your view on this?
Sound proof partitions for church features
Long-term use: with more economy and higher decorative, beautiful
and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of
smallpox and the ground.
Various forms: optional with a variety of occasions partition wall,
can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building
materials.
Material environmental protection: selection of high-quality
melamine particleboard, sound insulation and sealing a good variety
of accessories a variety of options.
Technical information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather,
Insulation board, Fireproof board, Wall paper, Vinyl, Painting,
etc.(Customized) |
