    Mud Purification System Sand Recovery Plant Advanced Technology

    Ask Lasest Price
    Brand Name : MZZG
    Supply Ability : 10 set 15 set per month
    Price : Negotiation
    Delivery Time : 35 work days
    Payment Terms : L/C, T/T
    Model Number : MZ18-100
    • Product Details
    • Company Profile

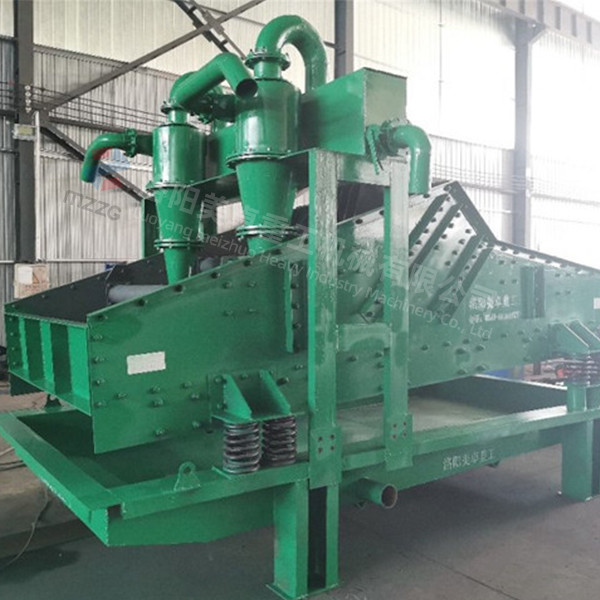

    Mud Purification System Sand Recovery Plant Advanced Technology

    Mud Purification System Sand Recovery Plant Advanced Technology


    Product Description

    Working principle
    The finished material of the sand washing machine directly enters the dewatering screen for dehydration. The mud water discharged from the sand washing machine enters the equipment cleaning tank, and is pumped to the high pressure separator through the bottom vacuum high pressure pump for classification and concentration. The sand mouth enters the dehydration, and other waste water, mud, powder, impurities, etc. are discharged into the return water tank through the overflow port of the high pressure separator.

    Application

    Widely used in mud purification, artificial sand production line, hydro power station and sand aggregate system, glass raw material processing system and coarse slime recovery, and fine material recovery.


    Structure

    Tech specification

    Model

    Water Consumption

    (m³/h)

    Screen size W*L

    (mm)

    Cyclone Model

    /NO.(mm)

    Power

    (Kw)

    Weight

    (kg)

    Dimension

    L*W*H(mm)

    MZ09-2530-60900*180025012.514002000*1300*2900
    MZ12-3050-1201200*240030019.520442515*1580*2930
    MZ15-6580-1601500*3000300/23630003327*1880*3200
    MZ18-100150-2401800*4500250/45271644744*2500*3200
    MZ24-120200-3002400*4500300/47582004744*3200*3200
    MZ24-180300-4002400*4500300/68988004744*3200*3200

    Features

    • Vertically install the cyclone for higher recovery.
    • The underflow of the cyclone is stable and the dehydration efficiency is better.
    • Easy to connect sand washing machine, saving land.
    Product Category
    Recycling sand washer
    Bucket sand washer
    TS dewater screen
    Sand recycle machine
    Thickener
    Filter
    FAQ

    FAQs

    1. Payment terms

    T/T. earnest money (30% of total amount) to be paid in advance, the rest amount to be paid after Inspection and before goods leaves factory.

    2. Warranty


    100% brand new when leaving the factory. The seller guarantee quality of the machines(excluding wearing parts)for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.

    3. Quality promise

    After the machine completed producing, the factory arrange the test practice, to ensure the smooth operation of the machine.

    4. Packing

    When the goods arrive at the customer site, simply connect power supply to trial production.

    The products should be processed to be rustproof and moisture proof before delivery.

    The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting

    5. Installation

    Installer should be familiar with the equipment structure, capacity and technical requirement, set out suitable installation process rules in advance.

    6. Working environment

    Working environment shall be none conductive dust, none inflammable, explosive and corrosive gas.
