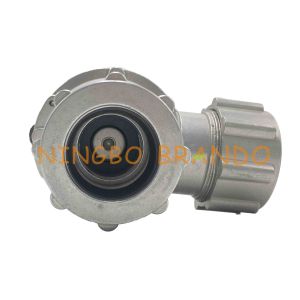

AC 220V DC 24V 1 1/2 Inch DD Series Goyen Type CA45DD Pneumatic
Pulse Valve With Thread Connection
1 Inch DD Series Pneumatic Pulse Valve , Diaphragm Valve
CA electro-magnetic pulse valve is a right-angle valve, with the 90
angle between the inlet and outlet, which is suitable for the
installation connection between the gas dome and the bag house blow
tube to provide good air flow and dust clean pulses satisfying the
requirement.
Valve body and cover are pressure die cast aluminum alloy .
Normally, diaphragms are made from Buna N elastomer, and are
suitable for temperatures ranging from -40 degrees F to 180 degrees
F. Viton material diaphragms are option for high temperature
applications.
Product Features:
The DD-series is high-performance reverse pulse jet valves with
dresser nut connection ports. These diaphragm valves are
specifically designed for the filter cleaning of dust collectors
and baghouses in reverse pulse jet systems.
DD Series Parameter Table Of Diaphragm Pulse Jet Valve In Air
Purification System:
| model | CA20DD | CA25DD | CA45DD |
| nominal size | 20 | 25 | 45 |
| port size | mm | 20 | 25 | 40 |
| in | 3/4 | 1 | 1-1/2 |
| diaphragm number | 1 | 1 | 2 |
| flow | Kv | 12 | 20 | 44 |
| Cv | 14 | 23 | 51 |
| pressure(Psi) | 5 to125 | 5 to125 | 5 to125 |
| temperature(℃) | NBR | -40 to 82 | -40 to 82 | -40 to 82 |
| FKM | -29 to 232 | -29 to 232 | -29 to 232 |
1 1/2 Inch DD Series Pulse Jet Valve Technical Parameters:
| Part No. | CA45DD |
| Operating pressure | 0.3~0.8MPa |
| Ambient temperature | -5~55℃ |
| Relative humidity | ＜85% |
| Fluid | Clean air |
| Voltage | AC110V, AC220V, DC24V |
| Electric current | 0.46A, 0.23A, 0.8A +-10% |
| Diaphragm life | More than 1 milion cycles |
| Orifice Diameter | φ 40 mm |
| Nominal Port Size | G1 1/2'' |
Detailes of G1 1/2" Nominal Port Size Diaphragm Pulse Jet Valve and
It's Overall Dimensions:
Pulse Jet Valve Installation:
1, Prepare supply and blowtube pipes to suit valve specification.
Avoid installing valves underneath the tank.
2, Ensure tank and pipes are free from dirt, rust or other
particulate.
3, Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no
excess thread sealant can enter the valve itself.
5, Apply moderate pressure to system and check for installation
leaks.
6, Fully pressurise system.
7, Test fire and listen for proper actuation and crisp pulse noise.
Detail Of CA45DD Goyen Type Solenoid Valve In Dust Collector
System:
Tips: All accessories can be sold separately as repair parts
(Diaphragm, Solenoid Coil, Armature Assembly)
Youtube Video Of 1 1/2 Inch Goyen Type CA45DD Solenoid Valve For
Dust Collector:
