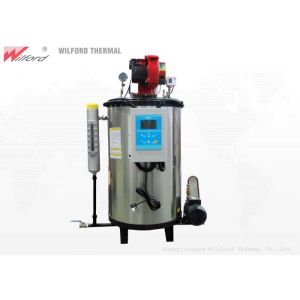

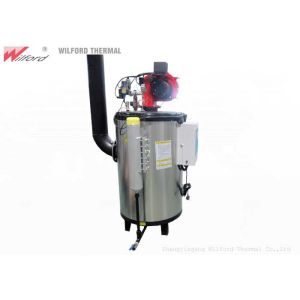

Small Gas Fired 50-100kg/h Industrial Steam Boiler

Name: Small Gas Fired 50100kgh Industrial Steam Boiler
Brand: WILFORD
Price: 1 USD

Ask Lasest Price
Brand Name :	WILFORD
Model Number :	LDR
Certification :	CE,ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	25 Set/Sets per Month
Delivery Time :	15-20 working days

Add to Cart

Product Details
Company Profile

Small Gas Fired 50-100kg/h Industrial Steam Boiler

Small Good Price Oil/gas Fired Steam Boiler Price

Product introduction

This type steam generator is designed and developped based <<Provisions on the safety supervision of small and atmospheric hot water

boilers>> and TSG G0001<<Boiler safety technology supervision regulation>>as well as JB/T 10094<<General technical requirements for

industrial boilers >>. The rated steam pressure is 0.7Mpa, rated steam evaporation is 50kg/hr, designed normal water level capacity is 29L.

According to article 99-- definition of the boiler -- <<special equipment Safety Supervision Regulations > >, that this type boiler capacity less

than 30L, and not belong to category of mandatory supervision and inspection --<<Measures for the supervision and administration of boiler

pressure vessel manufacturing >> and no need local supervision and inspection.

Parameter

Model			LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Project		Unit	LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Rated evaporation		Kg/h	50	100	125	200	250	300	500
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	6.8	8.5	14	16	20	33
	Natural gas	Nm³/h	3.5	7	8.75	15	19	22	36.5
	LPG	Nm³/h	1.5	3	3.8	6	7.5	9	14.5
	City gas	Nm³/h	8.5	18	22.5	34	43	52	88
Water capacity		L	29	49.3	49.6	49.5	49.5	49.5	49.6
a Main steam valve diameter		DN	15	25	25	32	32	32	50
b Safety valve diameter		DN	20	20	20	25	25	25	40
c Inlet diamater		DN	15	15	15	15	15	15	15
d Blowoff Valve diameter		DN	20	20	20	25	25	25	25
Chimney diameter		DN	80	125	125	150	150	150	250
Overall size	L	mm	820	880	900	1400	1500	1500	1800
	W	mm	890	1100	1150	1000	1100	1200	1300
	H	mm	1600	1800	1900	1000	2200	2200	2350
	φDiameter	mm	600	650	650
Weight		kg	180	220	240	850	1150	1200	1680

Product Advantage

♦ The furnace structure has good heat absorption effect, the combustion efficiency is 96%, and the thermal efficiency of the condensing device can be increased to nearly 100%.

♦ Energy-saving device and condensing device composed of laser finned welded pipe with advanced welding technology.

♦ High thermal efficiency and compact structure can greatly increase the heat exchange area, fully enhance the heat transfer of the flue gas and improve the efficiency of the boiler.

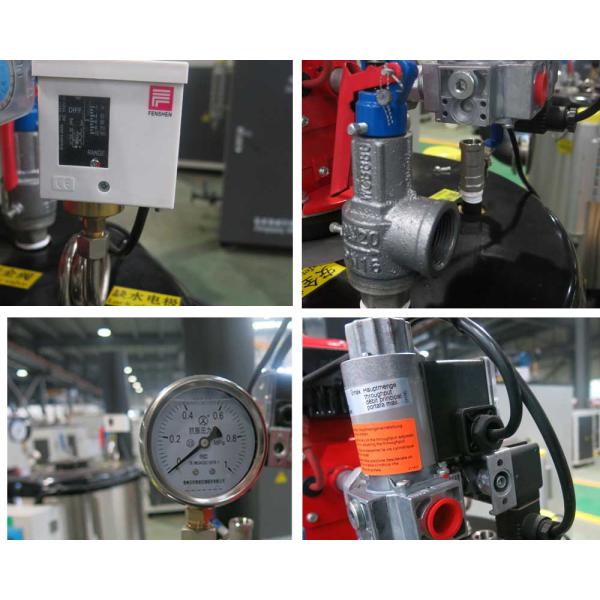

Product detail drawing

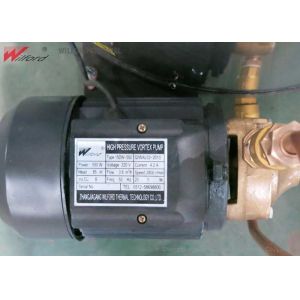

Product picture
