Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC

    Buy cheap Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC from wholesalers

    Buy cheap Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC from wholesalers
    • Buy cheap Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC from wholesalers

    Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC

    Ask Lasest Price
    Brand Name : Chimall
    Model Number : SBL-***A-CT
    Certification : CE
    Payment Terms : T/T
    Delivery Time : 25 days
    Price : Negotiable
    • Product Details
    • Company Profile

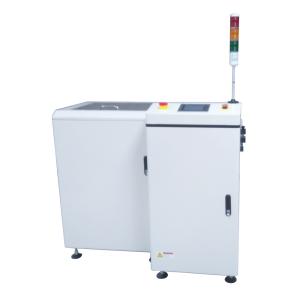

    Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC

    Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC


    Application

    The Single Magazine buffer can be used as a mid-line loader or unloader, as a LIFO and FIFO buffer and as a reject buffer.


    Features

    • Controlled by Omron PLC and servo motor.
    • Easy operation by touch screen.
    • 5 operative modes: Loader, Unloader, Buffer(LIFO/FIFO), By-pass and Reject mode.
    • Multiple pitches selectable.
    • 1 magazine loading capability, discharge magazine from the rear of machine.
    • Tower light display for machine status.
    • SMEMA compliant.
    • CE certified.

    Specifications

    ModelSBL-250A-STSBL-330A-STSBL-390A-STSBL-460A-ST
    SizeMLLLXL
    PowerAC 110/220V ±10V, 50/60HZ
    Air Pressure4 - 6 kgf/cm2
    Fixed RailFront
    PCB Size350x(50 - 250)mm460x(50 - 330)mm535x(50 - 390)mm535x(50 - 460)mm
    Transfer Height920 ±50mm or Specify
    Transfer Directionleft to right or right to left (option)
    Magazine Rack Size350x320x563mm460x400x563mm535x460x570mm535x530x570mm
    Pitches1 - 50, 10mm pitch
    Machine Dimension1120x1060x1200mm1320x1220x1200mm1500x1340x1200mm1500x1480x1200mm
    Machine Weight220kg240kg260kg280kg

    * Other options available on request.
