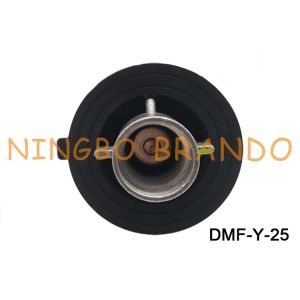

1'' DN25 Threaded Port NBR Diaphragm DMF-Y-25 Dust Collector Pulse
Jet Valve Of Submerged Type
DMF-Y-25 Submerged Type aluminum alloy die casting pneumatic pulse
valve. It is widely used in dust removal equipment. The most important accessory is the pulse
solenoid valve.
The Working Principle of Pulse Jet Valve
1. A diaphragm cavity after an area larger ththe front cavity area,
pressure force, so that the film is in the closposition.
2. Electronic instrument input signals, so that the electromagnetic
vent is movable column, opens the discharge hole, after the
diaphragcavity pressure gas discharge quickly, before the diaphragm
cavpressure gas lift valve diaphragm, open channel pulse blowing.
3. Electrical signal disappears, electromagnetic pilot head spring
to mothe column reset immediately closed vent, after the
diaphragcavity gas pressure and spring force so that the diaphragm
closes the passageway, valve stop blowing.
4. Diaphragm damping hole on the movable column, when the pilot
helift, gas pressure unloading, the damping the effects of airflow,
whunloading hole closed, so that the pressure of the gas to rapidly
filled wrear cavity, the diaphragm closes the passageway, stop
blowing.
Specification
| Model Number | DMF-Y-25 |
| Port Size | G1'' Inch |
| Membrane sizes | Φ96 |
| Blowing Area(m2) | 8-10 |
| CV | 30.53 |
| Operating Temperature Range | -25℃ to +80℃ or customized |
| Media | Clean Air |
| Pressure | 0.1Mpa~0.8 Mpa |
| Body Material | Aluminum Alloy |
| Seal Material | NBR, HNBR, FKM, EPDM, Silicone, All Available |
Overall Dimension
Deconstruction Diagram
Material Construction
| Part | Material |
| Coil | Copper |
| Plunger Tube | 430FR Stainless Steel |
| Diaphragm | NBR, HNBR, FKM, EPDM, Silicone, All Available |
| Spring | 321 Stainless Steel |
| Body | Aluminum Alloy |
Details
More Details about DMF-Y-25 On Youtube
Installation
1. Prepare supply and blowtube pipes* to suit valve specification.
Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other
particulate.
3. Ensure supply air is clean and dry.
4. Mount valve to inlet pipes and blowtube to valve, tighten
dresser nuts.
5. Tanks and pipes must be independently supported from valve.
6. Make electrical connections to solenoid or connect RCA pilot
port to pilot valve (RCA valves only).
7. Apply moderate pressure to system and check for installation
leaks.
8. Fully pressurise system.
9. Test fire and listen for proper actuation and crisp pulse noise.
