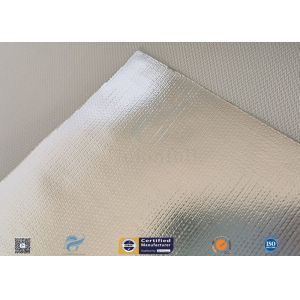

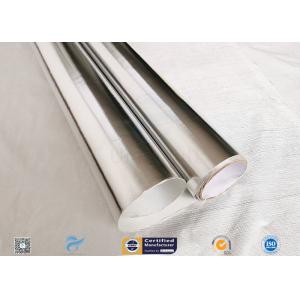

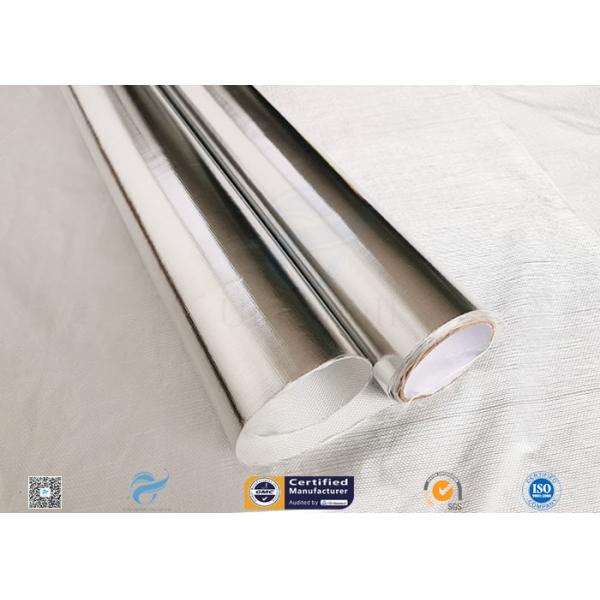

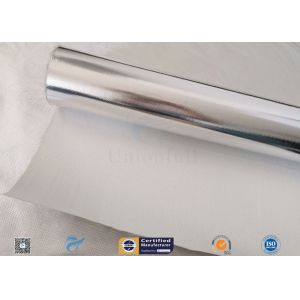

Smooth Surface Good Hermetic Laminated Aluminium Foil Fiberglass
Fabric
Description:
Single-sided or double-sided composite aluminum foil can obtain
high heat radiation reflection performance,meantime, it is
impermeable to air and water, and has good seaing performance. By
using special adhesives, and combined with advanced composite
technology, Unionfull's aluminum foil composite glass fiber cloth
have better fastness, high strength, better flame retardancy and
longer service life.
95% reflecting rate, could reflect most solar energy effectively
and barrier radiant effectively; light weight will not add more
burden to carrier; meanwhile fantastic durable because of glass
fiber mesh is strong enough; will not corrupt by moisture because
of 100% Inorganic raw materials was taken to produce it; pliable
and tough flexible easy to be installed from any angle.
Temperature resistant:
Fiberglass fabric: ≤550℃
Adhesive: ≤300℃
Aluminium foil: ≤300℃
Data sheet Of Basic Fabric:
Type
| C-glass/E-glass |
Item No.
| UPSE-8732 |
Thickness
| 0.43mm | 0.018inch |
Weight
| 430g/m2 | 12.6oz/yd2 |
Yarn weft/warp
| ECG37 1/0 | ECG37 1/0 |
Construction weft/warp
| 19.6/15 ends/cm | 19.6/15 ends/cm |
Temperature resistant
| ≤500℃ | ≤932℉ |
Tensile strength
| 2000/1600(N/50mm) | |
Data sheet Of UPCAL-8732:
Item
| Aluminum Foil Fiberglass Fabric |
Thickness
| 0.45mm |
Width
| 1 m, 1.2 m, 1.5 m |
Weight
| 450g/m2 |
Weave
| Satin |
Glass Yarn Type
| E-Glass/ C-Glass |
| Advantages | 95% radiant thermal reflective, Non-breath ability,Non-water permeability |
Advantage
1.Smooth surface on the aluminum foil
2.Good stretching resistance in length and breadth
3.Good fire resistance can be rated IMO part 5
4.95% heat reflection
5.Non-water permeability
6.Light weight and easy to handle
Main Application:
1.Used as the protective layer of super glass wool with excellent
functions of fire-resistance, anti-corrosion, heat isolation and
heat protection and sound absorption, sound-proof materials in
construction.
2.Heat insulation, sound absorption and noise reduction for car,
train, refrigerator car and laboratory; moisture proof cushion for
traveling
3.Packing for special products and cold storage
4.Making protective wear- gloves, covers
5.Wrapping materials of oil transportation pipelines and the steam
pipelines in the petrochemical industry, ducting with the same
effects as mentioned above
