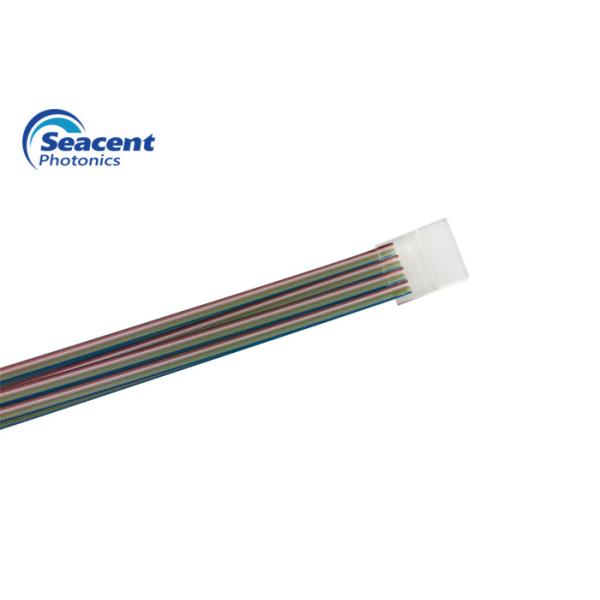

Low Insertion Loss Optical Fiber Array With High Precision Core Spacing

Fiber array 64 CH 3 type material UPC/APC Polishing angle

Descriptions:

Fiber Arrays, as one of the key parts for PLC Splitter, are fabricated with high precise V-Groove substrate to locate the fiber core position and accurate polish surface, offer low insertion loss and high return loss.

The fiber array is a bare fiber that removes the fiber coating.A portion is placed in the V-groove and is pressurized by the adhesive by the pressurization member.

Features:

Low insertion loss

High stability and reliability

Good channel uniformity

High precision core spacing

Meet ROHS standards

Specifications:

Item	Parameter
Number of channels	1CH ~ 128CH
Material	Quartz glass, borosilicate, silicon
Core distance/tolerance(μm)	250, 127 / 0.7
Fiber length (m)	2.0±0.1
Polishing angle ( ° )	0,+8, -8 (±0.3)
Polishing flatness	﹤ 5 fringes@633nm
Fiber type	SMF-28e or SMF-28e XB
Operating temperature(℃)	-40~85

V-groove base plate dimension table:

	L		W		H		X		Y	comprehensive error
type	size	common difference	size	common difference	size	common difference	size	common difference	core height difference	R=√ x2+y2
2CH 250	10	±0.3	2.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
4CH 250	10	±0.3	2.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
8CH 250	10	±0.3	3.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
8CH 127	10	±0.3	2.5	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
16CH 127	10	±0.3	3.5	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
32CH 127	10	±0.3	5.7	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
48CH 127	12	±0.3	7.8	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
64CH 127	12	±0.3	9.8	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
96CH 127	12	±0.3	16	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
128CH 127	12	±0.3	20	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1

Applications:

Active/passive array fiber optic device

Arrayed waveguide grating

Planar optical waveguide

Multi-channel optical module

Ordering Information:

Product number	Fiber type	Fiber length
01=1CH 02=2CH 03=4CH 04=8CH 05=12CH 06=16CH 07=24CH 08=32CH 09=48CH 10=64CH 11=96CH 12=128CH	1=G657A1 2= G657A2 3=G652D 4=G652B	0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized
