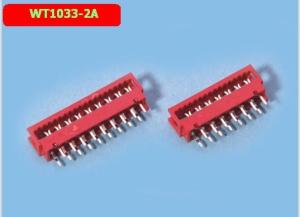

WT1033-2A Red IDC Connector Wire End Long Foot MICRO MATCH
CONNECTOR Factory Direct
Material:
Insulator: Polyester, Nylon 46, UL94V-0
Contacts: Brass/Phosphor Bronze T=0.25
Plating: Tin plated
Electrical Characteristics:
Contact Resistance: 20mΩ max.at DC100mA
Insulation Resistance: 1000MΩ min.at 500V DC
Withstanding Voltage: 500V AC/rms 50Hz For 1 min
Current Rating: 1AMP
Operating Temperature: -40-105 ° C.
Yuting Hardware Products Co., Ltd. is a professional manufacturer
of copper strips, electronic connectors and terminal blocks.
The electronic connectors are: pin header, busbar, pin header, DC3
simple horn pin (Jane), DC2 horn pin (horn socket), IDC connector
(FC type flat cable connector), DIP PLUG connection (FD type flat
cable connector), locking double row test socket, 805 type gold
finger socket, CY401 printed board socket, round hole socket,
double round pin header, round hole pin header, round Hole IC
socket, flat foot IC socket, dip switch (dial switch), DIN41612
European socket connector, short circuit block, short circuit cap
(jumper cap), D-SUB connector, D-SUB connector assembly housing,
gray row Line, rehearsal line, various wire harness processing,
SCSI connector, bus socket, PLCC socket, aviation plug aviation
socket, IP65-IP68 round waterproof connector, breadboard, etc.
Mainly used in smart meters, LED lighting, computers, consumer
electronics, communications equipment and LED display.
Terminal blocks are: screw type PCB terminal block, spring type PCB
terminal block, plug-in type terminal block, fence type terminal
block, through type terminal block, rail type terminal block, WAGO
screwless connector terminal block. Mainly used in security,
lighting, instrumentation, industrial power, electronic
professional equipment and other fields.
