    532nm Wavelength Yag Laser Welding Machine PG3 For Copper / Aluminum 350kg

    Ask Lasest Price
    Brand Name : HAN'S
    Model Number : PG3
    Certification : CE
    Price :
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50 sets /Month
    Delivery Time : 7 working days after deposit
    • Product Details
    • Company Profile

    532nm Wavelength Yag Laser Welding Machine PG3 For Copper / Aluminum 350kg


    HAN'S Green light YAG laser welder PG3 for Copper,

    aluminum, gold, silver laser welding machines


    Specification


    Laser modelPG3
    Laser typeYAG
    Laser wavelength532nm
    Laser output average power3W
    Max. laser peak power1kW
    Max. laser pulse energy3J
    Pulse width≤5ms
    Pulse frequency≤10Hz
    Waveform number50 groups
    Fiber output number1 path
    Beam split mode------
    Fiber core diameter0.2mm
    Closed-loop feedback control modeLaser power feedback
    Aiming positioning modeRed light guide (CCD and monitor are optional)
    Cooling modeInternal air cooling
    Main machine power consumption5kW
    Power demand (voltage, frequency and current)220V±10%/50Hz/25A
    Main machine weight350kg
    Main machine dimension1280x550x1165mm



    Product Description

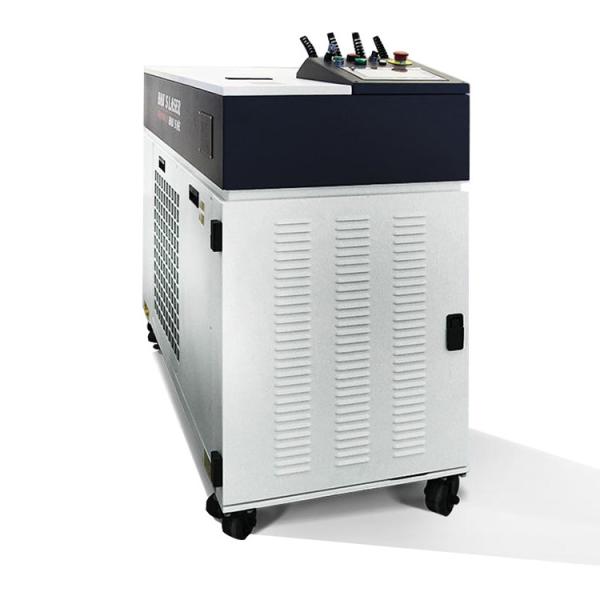

    Green light YAG laser welder PG3
    Summary information
    1. 532nm wavelength green laser.
    2. Peak pulse power up to 1kW.
    3. Shorter wavelength with superior better beam quality compared to traditional 1064nm near-infrared laser.
    4. Recommended for reflective difficult to weld metals such as gold, silver, and copper without the splash.
    5. Produces uniform depth and smooth welding on highly reflective materials.
    The PG3 is a wide pulse green laser with a fiber-coupled output. Thanks to its small beam diameter, superior beam quality, and short focal length, the PG3 produces uniform depth and consistent welding on highly reflective metals such as gold, silver, and copper without splash.

    Application:

    This laser spot welder is mainly used for repairing holes of gold and silver jewelry, seams and claw parts. It can be applied to a variety of metals and alloys such as,

    • gold
    • silver
    • platinum
    • stainless steel
    • titanium
