Product Description

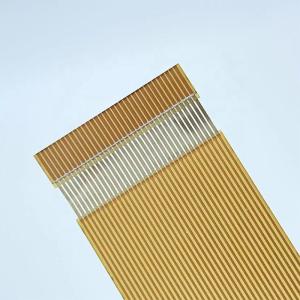

FPCB Cable For Connection Polyimide Flexible Cable
PCB Details:
* 1/1 OZ FPC* 2 layer FPC
* 0.2 mm board thickness FPC
* Space/Width line :6mil/6mil
* Fast delivery, anti-static package
| Product Name | FPCB Cable For Connection Polyimide Flexible Cable |
| Layers | FPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers |
| Regular Base Materials | Polyimide(PI), Polyester(PET), FR4 |
| Base Copper Thickness | 1/3 oz to 8oz |
| Regular Base Material Thickness | 12.5um to 50um(FPC) |
| Regular Coverlay Thickness | 27um to 50um |
| Outline Fabrication | Die cut, laser cut, CNC routing, V-scoring |
| Min.Line Width/Spacing | 0.03mm/0.03mm |
| Hole to edge(Hard tool/Die Cut) | ±0.1/±0.2mm |
| Edge to edge(Hard tool/Die Cut) | ±0.05/±0.2mm |
| Circuit to edge(Hard tool/Die Cut) | ±0.07/±0.2mm |
Cablelinker designs and manufactures flexible printed circuits
(FPC), flat flexible cables (FFC) and customized wire harnesses for
our customers worldwide.
Cablelinker provides comprehensive engineering and manufacturing
specializing in flexible interconnect systems.
From our inception, we have been dedicated to developing innovative
high-density interconnect solutions for all electronics industries.
Cablelinker has the expertise to provide design, documentation,
procurement and supply chain management with specialized added
value services and support.
CABLELINKER ADVANTAGE:
Independent, unbiased design
Total Solution provider
Improve reliability while enhancing performance
Improved overall system cost
Improved design
Improved manufacturability
Improved time to market
Application
FPC cable is widely used in all kinds of electronics product which
is indicated as below :
1. Displayer
2. PC and Computer
3. Flat screen TV
4. Printer, Scanner, FAX machine, Copier.
5. Sound Box
6. MP3, MP4
7. CD/ DVD
8. Digital camera
9. Fax machine and copier
10. Scanner
11. Acoustics
12. Tablet PC
13. toy for children
PRODUCTION FLOW :
Company Information
Cablelinker provides comprehensive engineering and manufacturing
specializing in flexible interconnect systems.
From our inception, we have been dedicated to developing innovative
high-density interconnect solutions for all electronics industries.
Cablelinker has the expertise to provide design, documentation,
procurement and supply chain management with specialized added
value services and support.
