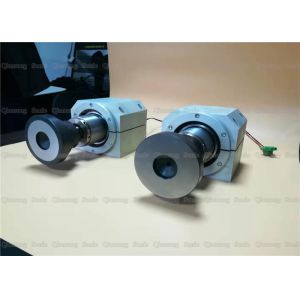

Strong Reliable Welding Effect by Ultrasonic Rotary Wheel Sealing
with 22mm Width Welding Line
Description:
Ultrasonic rotary vibration is used for sewing and cutting of
fabrics. Qianrong Equipment is the first in China to develop a
20khz 2500w ultrasonic seamless sewing machine core. This is the
core part of ultrasonic seamless sewing machine (also called
ultrasonic radial sewing machine), our original product. It
completely solves the inherent problem of the original ultrasonic
longitudinal vibration technology, that is, the moving direction of
the ultrasonic welding head is inconsistent with the moving
direction of the cloth and is not synchronized. The accuracy of
ultrasonic cloth stitching has been greatly improved, thus making
it possible for the ultrasonic technology to be widely used in the
field of garment stitching. Ultrasonic seamless sewing has the
characteristics of fast welding speed, high strength, beautiful
welding seam, good sealing performance, low energy consumption, and
simple operation. It is the development direction of sewing
machines.
Specifications:
| Item No | QR-S20DL |
| Power | 2500W |
| Generator | Digital generator |
| Frequency | 20KHZ |
| Voltage | 220V or 110V |
| Width of welding wheel | 22mm |
| Matched Transducer | 5020-4D PZT4 |
| Generator size | 400*195*98mm |
Advantages:
1. High stability: The welding wheel and pressure wheel rotate
completely synchronously during ultrasonic seamless stitching,
there is no difference in speed and angle, and it will not cause
stretching, distortion or deformation of the fabric, which is
extremely accurate. Thanks to the hot-melt effect, there is no need
to use needle thread, the product is more waterproof, lighter and
easier to fold.
2. Welding and cutting synchronization: Ultrasonic seamless
stitching equipment is not only suitable for continuous stitching,
but also can cut textiles while welding, and realize automatic edge
banding.
3. No thermal radiation: The energy penetrates the material layer
for welding during ultrasonic stitching, and there is no thermal
radiation. During continuous stitching, heat will not be
transferred to the product, which is particularly beneficial for
the packaging of heat-sensitive products.
4. Controllable welding seam: The cloth is pulled by the welding
wheel and pressure roller, passing through it, and the cloth is
welded by ultrasonic waves. By changing the pressure roller, the
welding seam size and embossing can be changed.
5. Wide range of applications: All thermoplastic (softened after
heating) fabrics, special tapes, and films can be welded using
ultrasonic seamless stitching equipment, and the rollers are made
of hardened steel to extend the service life.
