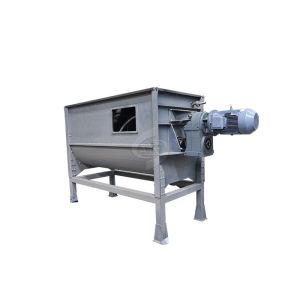

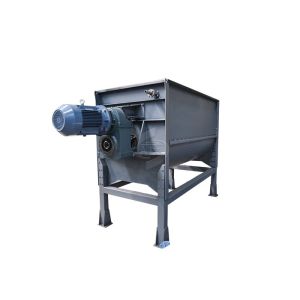

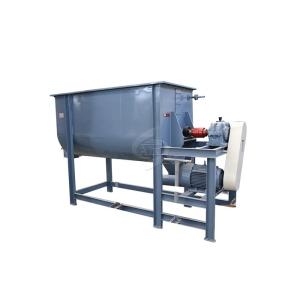

Animal feed mixer machine horizontal mixing machine for animal
Applied range
9HWP Series Horizontal Ribbon Mixeris mainly used to coating, dry
powder and chemical industry Used to mix various dry powder
material metered in proportion. Also can be used to mixing feed and
cooperate with other feed processing equipment in medium and small
sized farm.
Product features
Applicable to the feed, food, chemical, pharmaceutical, pesticide
and other industries in powder, granule, flake and miscellaneous
materials mixing; Horizontal, batch type mixer, each batch mixing
time is 3 ~ 6 minutes, especially for adding liquid mixing; equip
the grease adding pipe, overall structure is reasonable, the
convenient operation and maintenance; with creative generation
ribbon blade rotor structure, cv ≤ 5%, Shaft head and end and
discharging door adopt unique mature sealing technology, ensure no
leakage. And the standard chinese standard motor, domestic gear
speed reducer, reducer motor belt drive.
Advantages
1. With simple and reasonable structure, convenient maintenance,
safe and reliable, high mixing evenness, short mixing time, little
residuals;
2. Can be used as the compound feed unit for medium and small sized
farm;
3. Applicable to coating, try powder, chemical industry, used to
mix various dry powders metered in proportion.
Technical parameters
| Model | Volume(m ³) | Mixing time(min) | Mixing evenness CV (%) | Power (kw) |
| 9HWP-150 | 0.3 | 3-5 | ≤5 | 1.5 |
| 9HWP-250 | 0.5 | 3-5 | ≤5 | 4 |
| 9HWP-500 | 1.0 | 3-5 | ≤5 | 7.5 |
| 9HWP-1000 | 2.0 | 3-5 | ≤5 | 15 |
