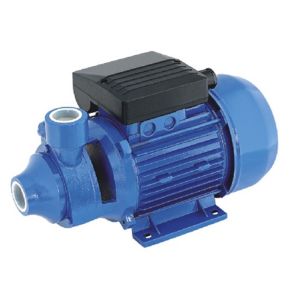

A.C. Pump Rotor And Stator Electric Portable Water Pump By
High-Speed Punching Machine
APPLICATIONS:
These Pumps are highly reliable, light, economical, and simple to use.
Finding many uses in domestic applications.
In particular, the automatic distribution of water from surge
tanks.
Watering gardens and for boosting insufficient mains water
pressure.
Electric Motor Water Pump ADVANTAGE:
1) A brass plate embedded to avoid impeller jam
2) 100% high quality copper,100% output
3) Cold-rolled silicon steel sheet by a high-speed punching machine
4) Good quality bearing, the surface more smooth, the dimension
more precise
5) Thermal protector
6) One year warranty
STRUCTURAL CHARACTERISTICS:
Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching
machine. 2. 100% high-quality copper wire |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK, S.K.F., or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
TECHNICAL DATA:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) |
| PM-45 | 0.5 / 0.37 | 1.6 | 2850 | 36 | 36 | 9 | 1"x1" | 260x150x185 | 5.8 |
| PM-50 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 335x180x200 | 9.5 |
| PM-60 | 1 / 0.75 | 4.8 | 2850 | 50 | 60 | 9 | 1"x1" | 335x180x200 | 10.2 |
Other voltages and frequencies available on request
Electric Motor Water Pump GUARANTEE:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by the
customer's incorrect artificial operation. In addition, after
expiration, our company provides cost spare parts for maintenance.
