The products have been upgraded the E model through work hard for
10 years and in such fields as of pharmaceutical,biological
products etc. It can be widely used for coating various tablets,
pills and sweets with organic film, water-soluble film and sugar
film etc. It has such characteristics as high efficiency, low
energy consumption and small floor area, etc.
It could be film coating, sugar coating, chocolate coating etc,
with multi function.

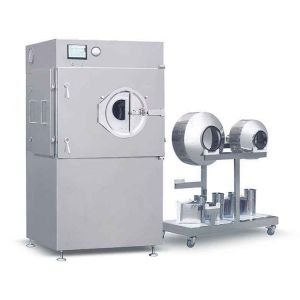

BG Series High Efficient Pharmaceutical Tablet Film Coating Machine
Filtration Hot Air Cabinet
Firstly, air inhaled in through the centrifugal fan should be
purified up to the 100,000 Level after three times filtration,
involving primary filtration, medium filtration and high
filtration, then be blown to the drum of main machine through the
(steam or electrothermal) .Equipped with a vibration damper.
Equipped with primary filtration device in the air inlet.
Air Exhaust Cabinet
Used for exhausting air out of drum in the major machine (
including dust absorption), keeping the working area under negative
pressure. Equipped with a vibration damper. The exhaust outlet is
equipped with a reflux-proof device. Close the exhaust cutlet
before stop the machine to prevent the air in the exhaust cabinet
from reflux. It is equipped with dust abatemert & filtration by
vibration. so the vibration and dust are insulated, the dust is
stopped from fly off and the dust abatement is automatically
separated, which makes easy.
Agitating and Holding Tank (Electric-Heating)
Thermal stirring drum adopts electric heating type. It is equipped
with pneumatic stirrer which is driven by compressed air, stable
rotating speed and stepless speed regulating, medium can be stirred
homogeneous. It can be controlled automatically at normal
temperature to 80°C, easy-operating, safe and reliable. All parts
are made of stainless steel, inside and outside is mirror polished.
Basic Working Principle:
The tablets in drum make complicated and constant track movement
with easy and smooth turn frequent exchanging in a clean and closed
drum of the film coating machine. The coating mixed round in the
mixing drum are sprayed on tablets through the spray gun at the
Inlet un action of the peristaltic pump. Meanwhile under the action
of air exhaust and negative pressure 100,000 clean hot air supplied
by the air exhaust cabinet is exhausted from the fan at the sieve
meshes through tablets. So these coating mediums on the surface of
tablets get dry forming a coat of firm, fine and smooth film. The
whole process is finished under the control of PLC.
