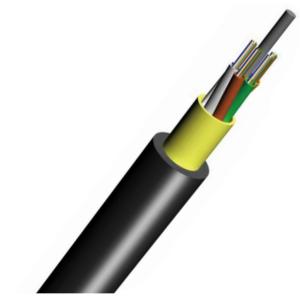

ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable

    Buy cheap ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable from wholesalers

    Buy cheap ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable from wholesalers
    • Buy cheap ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable from wholesalers
    • Buy cheap ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable from wholesalers

    ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable

    Ask Lasest Price
    Brand Name : OEM Produce
    Model Number : MGFTY
    Certification : CE/ ROHS
    Price : 100-300usd
    Supply Ability : 1000km/ month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    ADSS Mini Span All Dielectric Fiber Optic Cable , Self Supporting Aerial Cable

    ADSS Mini-Span Outdoor Cable

    All Dielectric Self-Supporting Aerial Cable

    Description:
    Mini-Span All-Dielectric Self-Supporting (ADSS) cable’s designed for outside plant aerial and duct applications in local and campus network loop architectures.From pole-to-build to town-town installations, the Mini-Span cabling system, which includes cables, suspension, dead end and termination enclosures, offers a comprehensive transmission circuit infrastructure with proven, high-reliability performance.

    See EFON's Fiber Optic Cable Hardware catalog for more information. Mini-Span includes fiber counts up to 144 optical fibers and any type or combination of single-mode and multi-mode fibers with the cable. Pole-to-Pole span lengths range from 50 feet to over 650 feet(30-200meters).

    Temperature Range
    Operating : -40ºC to +70ºC
    Storage : -50ºC to +70ºC
    Installation : -30ºC to +70ºC
    Bending Radius:
    Static 12.5D
    Dynamic 25D

    Characteristics
    Can be installed without shutting off the power.

    Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
    Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
    Large span lengths and the largest span is over 200m. Good performance of tensile strength and temperature. The design life span is over 30 years.

    Optical Characteristics ADSS Mini Span

    Fiber TypeG.652G.65550/125μm62.5/125μm
    Attenuation(+20℃)850 nm≤3.0 dB/km≤3.3 dB/km
    1300 nm≤1.0 dB/km≤1.0 dB/km
    1310 nm≤0.36 dB/km≤0.40 dB/km
    1550 nm≤0.22 dB/km≤0.23 dB/km
    Bandwidth850 nm≥500 MHz·km≥200 Mhz·km
    1300 nm≥500 MHz·km≥500 Mhz·km
    Numerical Aperture0.200±0.015 NA0.275±0.015 NA
    Cable Cut-off Wavelength λcc≤1260 nm≤1450 nm


    Structure and Technical Specifications

    Ref. OuterRef. WeightRec. Daily Max.Max AllowableBreakStrengthModulus ofHeatSuitable Span
    Diameter(kg/km)Working TensionWorking TensionStrengthMemberElasticityExpansion(NESC Standard,m)
    CSACSACoefficient
    (mm)PE JacketAT Jacket(kN)(kN)(kN)(mm²)(kN/mm²)(×10-6/K)ABCD
    111101201.54104.67.61.8160100140100
    11.511512522.56157.68.31.5230150200150
    121201303.082010.359.451.3300200290200

    Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.


    If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

    If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
