PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER

    Buy cheap PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER from wholesalers

    Buy cheap PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER from wholesalers
    • Buy cheap PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER from wholesalers
    • Buy cheap PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER from wholesalers
    • Buy cheap PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER from wholesalers
    • Buy cheap PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER from wholesalers

    PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER

    Ask Lasest Price
    Brand Name : LB
    Model Number : LB-25, LB-150
    Certification : CE, ISO
    Price : USD, EUR
    Payment Terms : L/C, T/T
    Supply Ability : 15 SETS PER MONTH
    Delivery Time : 45 WORKING DAYS
    • Product Details
    • Company Profile

    PE / PO PLASTIC EXTRUDER, PLASTIC PIPE EXTRUDER, SINGLE SCREW EXTRUDER

    SINGLE SCREW EXTRUDER


    COMPONENTS AND FEATURES:


    Single screw extruder is professional equipment to extrude the material of polyolefin. Equipped with different die head, downstream equipment, it can be applied for manufacturing of polyolefin pipe, panel, sheet, film, yarn and pelletizing, etc.. It consists of following items:

    • Driving motor: equipped with famous brand motor as driving source.
    • Gearbox: equipped with famous brand gearbox to ensure the maximum output of power

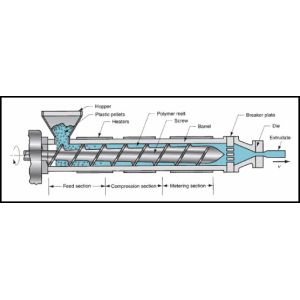

    • Screw & barrel: both the screw and barrel adapted the designing of combined of independent teeth and mixing components together for screw and the feeding groove and longer feeding section together for barrel to get the optimizing plasticizing and capacity.
    • Control system: equipped with famous brand electrical components ensure to get the accurate control

    SPECIFICATIONS:

    Model

    Screw diameter

    (mm)

    L/D

    Rotary speed

    (rpm)

    Motor power

    (kw)

    Capacity

    (kg/hr)

    SJ25/252525:125-1301.5 AC1-3
    SJ30/253025:125-1505.5 AC2-8
    SJ45/30/334530:1,33:18-1007.5 /15 AC4-50
    SJ65/30/336530:1,33:112-15037/55 AC50-120/50-250
    SJ75/30/337533:112-12090 DC50-350
    SJ90/30/339033:110-12090/160 DC100-320/100-550
    SJ120/30/3312033:19-90160/250 DC200-500/200-800
    SJ150/30/3315033:17-75250/315 DC300-800/500-1200
