Ceilings System | Architecture | Aluminum Expandede Mesh Ceiling

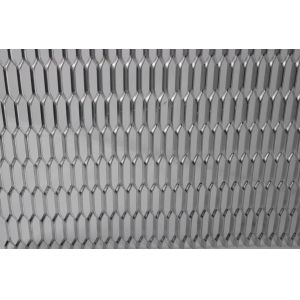

Expanded metal is a versatile and economical product. Made from a
sheet of metal uniformly slit and stretched, forming diamond-shaped
openings in the sheet.
The strands and bonds of expanded metal add strength and rigidity.
Expanded Metal comes in a standard (raised) or flattened diamond
pattern in a variety of gauges, opening sizes, materials and sheet
sizes.
Specification
| Material | Aluminum,Stainless Steel, Low Carbon Aluminum,Low caron steel, Galvanized steel,stainless steel,Copper, titanium etc |
| LWD | MAX 300mm |
| SWD | MAX 120mm |
| Stem | 0.5mm-8mm |
| Sheet width | MAX 3.4m |
| Thickness | 0.5mm – 14mm |
Surface treatment | - Without treatment is ok - Anodized (colour can be customized) - Powder coated - PVDF - Spray painted - Galvanized : Electric galvanized, Hot-dipped galvanized |
Classification | - Small expanded wire mesh - Medium expanded wire mesh - Heavy expanded wire mesh - Diamond expanded wire mesh - Hexagonal expanded wire mesh - Special expanded |
Use | Expended metal mesh can be widely used in including theprotection
of machinery equipment, handicraft manufacturing, shelves, heavy machinery, work platforms, walkways,ships as well as other areas. |
| Specification of Expanded Metal Mesh |
| Sheet Thickness | Opening in Width
mm | Opening in Length
mm | Stem | Roll Width
mm | Roll Length
mm | Weight
kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 2.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 2.5 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 2.5 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 2.5 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 2.5 | 2 | 1.77 |
| 1.2 | 10 | 25 | 1.1 | 2.5 | 4 | 2.21 |
| 1.5 | 23 | 60 | 2.6 | 2.5 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2.5 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2.5 | 4 | 3.69 |
| 6 | 50 | 100 | 6 | 2.5 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2.5 | 2.1 | 28.26 |
Application
Covering screen,house decoration, sun blinds, handicraft
production, high - grade speaker, ceiling, curtain wall, partition
panel,handrail, walkway, facades, guards, stairways, etc
FAQ
1. Professional
Over 20 years' experience in wire mesh industry and export more
than 70 counries. Dongjie Wire Mesh is the real professional
manufacturer.
2. Product Quality
The quality of product is the key of the survival of enterprise .
Dongjie Wire Mesh is a ISO9001:2008 certificated manufacturer.
3. Reasonable Price
We'll exactly control each producing process to reduce cost for our
customers. After clients receiving the quotation, we 'll show you
the rational priceand the difference between our products and other
suppliers' products.
4. Delivery Time
We'll make a produciton plan before producinig, and the sales will
regularly inform the production schedule and process to the
customer.
5. Communication
English is the basic language and other language also can be
understood. All customer's e-mail will replied within 2 hours at
working hours and must be replied within 12 hours at non-working
hours.
6. Customized
Personalized, professional service - We can provide different
programs according to customer's requirement, thus make customers
choose the best and appropriste one.
