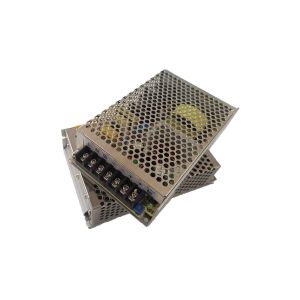

42W Single Output (230V AC input only) Industrial Power Supply
Product features
230VAC input only
Power on indication
Metal case
Protections: Overload / Short circuit
Battery reverse charge protection
100% full load burn-in test
1 year warranty
Specifications
Input voltage 195VAC~253VAC
Input frequency 50HZ~60Hz
Inrush current 40A @ 220VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 150% of the rated output power
Operating temperature -20℃~40℃
Safety standard EN60950, GB4943- 2001
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min
I/P-FG: 1.5kVAC, 1min
O/P- FG: 0.5kVAC, 1min
Weight 0.37kg/pcs
Our Advantages
OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of
switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times
testing
With high reliability,105℃long life capacitor,can withstand
300VAC,input voltage 5 seconds without damage
| P/N | Output | Tol. | R&N | Effi. | Load Regulation |
| ESP-42-13.8 | 13.8V,3A | ±3% | 120mV | 70% | ±2% |
| ESP-42.27.6 | 27.6V,1.5A | ±3% | 240mV | 70% | ±2% |
FAQ
Q1: How many year warranty of your Led driver?
A: One years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding
aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with
large order,we can apply for it
