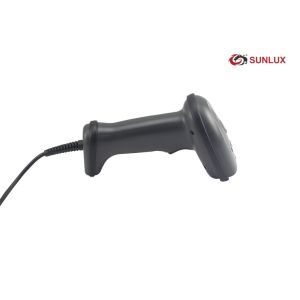

SUNLUX Visible Laser Diode 650nm Handheld Barcode Scanner XL-626,
32 Bits CPU
Product Features
1. New 32-bit high performance full hardware decoding technology
2. Unique optical process reflective lens, sensitive and fast
scanning
3. Strong identification of fuzzy barcode and high-density barcode
4. Robust and classical design
5. Easy configure and software update
6. Support 20 countries keyboard languages
7. With IP 54 waterproof and dustproof protection
8. 32 bits CPU,strong decode ability on difficult codes
Product Specifications
PERFORMANCE PARAMETER |
|---|
Light Source | Visible Laser Diode 650nm |
|---|
Scan Pattern | Single Scan |
|---|
Scan Rate | 300 times/second |
|---|
Scan Precision | 3mil |
|---|
Scan Width | 30mm@scan window, 220mm@200mm |
|---|
Scan Depth of field | 20-450mm (0.33mm pcs0.9) |
|---|
Decode Capability | Industrial 2 of 5, Standard 25, Matrix 25, China post 25, Code 11,
Codabar, Plessey UK, Plessey, Code39 (Standard 39 & Full ASCII Code
39), Code 32, Code 93, Code128, UPCA, UPCE, EAN13, EAN8, UPC/EAN
add-on 2/5, ISBN, ISSN, GS1(RSS) RSS-14,LIMITED, EXPENDED, Include
GS1 STACK |
|---|
Tilt | 30 |
|---|
Elevation Angle | 65 |
|---|
Deflection Angle | 55 |
|---|
Support Interface | RS 232 & PS2 & USB(not interchangeable) |
|---|
Print Contrast | 10% UPC/EAN 100% |
|---|
Mention Pattern | Buzzer, Indicator |
|---|
Scan Mode | Manual & continue scanning |
|---|
MECHANICAL PARAMETER |
|---|
Size | L x W x H: 175mm x 73mm x 102mm |
|---|
Weight | 238g |
|---|
Material | ABS + PC |
|---|
Cable | Standard 2M straight |
|---|
ELECTRICAL PARAMETER |
|---|
Voltage | 5VDC |
|---|
Operating Current | 90mA |
|---|
Static Current | 40mA |
|---|
Laser Class | Meet the Grade I National Criteria for Laser Safety |
|---|
EMC | CE & FCC DOC compliance |
|---|
ENVIRONMENTAL PARAMETER |
|---|
Operating Temperature | 0°C to 45°C |
|---|
Storage Temperature | -20°C to 60°C |
|---|
Humidity | 5% to 85% relative humidity, non-condensing |
|---|
Light Levels | Daylight, 5000Lux |
|---|
Shock | Designed to withstand 1.5M drops |
|---|
