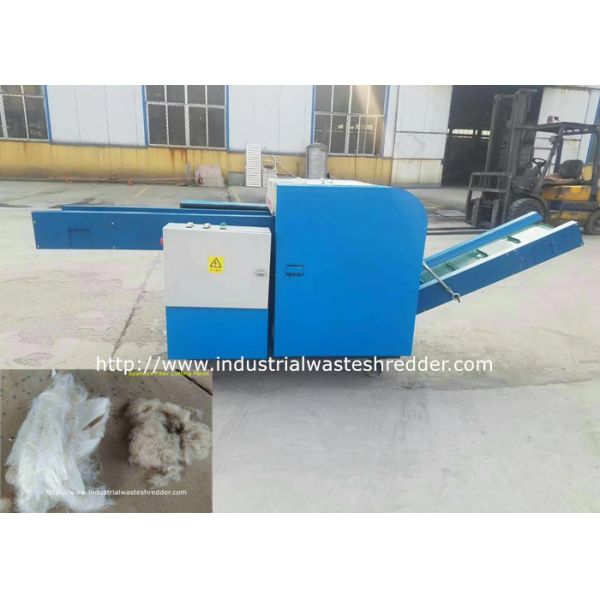

Spandex Fiber High Elasticity Strength Fiber Recycling Cutting
Machine All Fiber Available High Efficiency Power Saving Lower
Price
Main Features Advantage & Design
Joful "J" series cutting machine is design specially for fibers and
other soft materials and already apply the patent, we are the only
manufacture in China supply such machine, with 15 years
development, our annual production capacity has reach 700 sets,
export to all over the world, if you recycling the fiber or other
soft type materials, Joful "J" series cutting machine will be your
best choice
Advantage
* Better cost effective solution, higher capacity, uniform
discharge size, and lower price
* Replaceable wearing parts (cutting blades), guarantee long
lifespan
* Customizable solution available, make sure the machine suitable
for you most
* 100% test and inspection before delivery, quality guarantee
* More than 10 years well skilled workers
* Quick delivery time, for regular models we have raw materials in
stock
* Wooden box safety package delivery
* In time after sales service, well technology support
* Global market experience, has sales agent in Taiwan, USA, Mexico
* Annual more than 700 sets finish machine export to all over the
world
Design
Joful spandex fiber cutting machine adopt with rotating twisted
knife design, with application of international leading oblique
knob scroll meet the shear design of point moving knife and fixed
knife, continuous high-speed shear, just like a big scissors, high
speed rotating cutting, the discharge port with detachable screen,
screen size can be customizable as your cutting final size request,
fully meet you different cutting size request
Description About Spandex Cutting Machine
Main Datas
| Model | JF 1600 |
| cutting motor | 8P 18.5/22KW, customizable |
| transport motor | 4P 3.0kw Inverter motor |
| pulley wheel of cutting motor | Φ180 |
| Moving knife wheel | Φ500*800 |
| power distribution cabinet | Independent cabinet |
| belt | Glossy and matte surface per different materials |
| moving knife | Rotating twisted knife |
| Stationary knife | 2 pcs |
| main machine size | Customizable |
| cutting size | Minimum 2mm, up tp dozens centimeter |
| output capacity | up to several tons per hour |
| working voltage | Customizable, price no change |
The machine can be customizable according to your different cutting
request and materials
Application
| Bags/plastic films/strips | Jumbo bags / PP bags / woven & non-woven bags / plastic bags (PP PE
PVC ect.. as long as they are soft bags), plastic films |
| Textile scraps | Quilting edges ,threads, yarns, Clothes (Underwear
scrap,jeans,towel,cap scraps,non-woven fabrics,cotton fabrics),
Shoes Scraps etc.. |
| Fibers | Glass fiber, fiber yarn, Coconut fiber, Polypropylene fiber
,polyester fiber, Silk fiber, etc |
| Foams | Sponge/mattress scraps /flexible PU foam / EPS foam / XPS foam
/Rock wool foam / glass wool foam / EPE foam / Cotton , silk cotton
etc |
| Others | Leather /Carpet / Papers / books /cardboard / plant straw / fish
net / ropes etc |
As long as they are soft type materials, it can be all used on our
shredder machine
We warmly welcome you test our shredder machine before buy, this
can help you understand our machine working performance better and
100% release your concerns about it
For your convenience consider, we offer below ways to test the
machine
* Test in our factory, personal comes or send samples here, we make
cutting test and take videos for you confirm, or we can find same
materials in our local, make test for your confirm
* Test in our oversea sales agent, Mexico, USA and Taiwan
* Test in our old client's factory nearby you, we will arrange for
you
Beside, to make you understand our factory better, we support video
call available, during the call we will show you around our
workshop, introduce every working processing and make cutting test
at the same time
Delivery Time
5-30 working days after deposit arrived, generally we have machine
raw materials in stock, so our delivery time will be much quicker,
the exact delivery time is depend on which model you order, and
working voltage request
Installation
Its almost complete machine delivery, very easy for your install,
just need assembly the belt and connect the power, we will offer
you user manual, installation drawing and videos to help you, if
necessary, we engineer support oversea machine install and training
your workers, only need you arrange the flight ticket and hotel
After Sales Service
1. 12 months guarantee after the machine arrived you, life long
technical support for free
2. We have regular return visit for all old clients. For new
clients , we contact them every week for feedback
3. We engineer support machine oversea install, training your
workers, and big problems solve
4. Any spare parts or wearing parts, you can get from us at cost
price, guarantee the machine long lifespan
The Problems You May Possiblely Meet After Buying
1. You need to sharpen blade regularly (The sharpening frequency
depends on what scrap you cut, and daily working hours), we will
offer you automatic blades sharpening device, you can solve thi
problem by yourself
2. You need exchange new blades, we will offer you such spare parts
Blades & Machine lifespan
Blades
Generally 10-24 months, depend on what you cut, and daily working
hours, if the materials are clean or dirty with mud or sand
Machine
Generally can be 10 years, if you operated and maintenance the
cutting machine properly
FAQ
| How much is your machine | We have different models of this kind cutting machine, in order to
confirm which model is suitable for you, we need to know below * what materials you cut, better with details photos * hourly capacity request * cutting final size request |
| Do you have catalog | We offer customizable machine solution, not standard machine, so we
do not have a catalog yet, please let we know your request about
the machine then our R & D can design the machine accordingly and
quote you the best price |
| What should i do if any problem happened | Firstly stop the machine and contact us firstly, do not try to
repair the machine yourself, we will solve all after sale question
inquiry within 12 hours latest. ( we can offer instant service if
we're in same time zone) .
If necessary, we engineer support oversea to solve your problem |
| Are you factory | Yes, we are 15 years factory |
If you Interested, Please feel free to contact us!

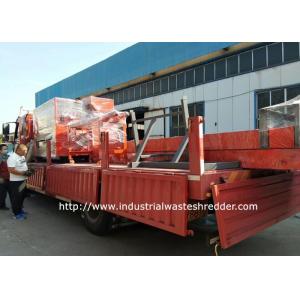

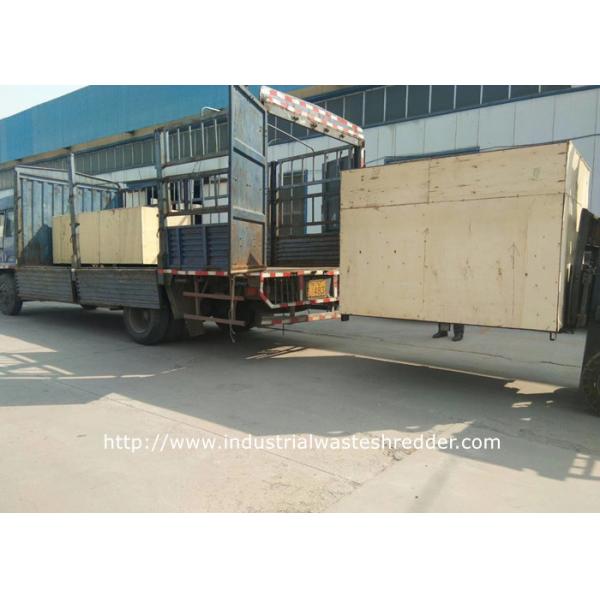

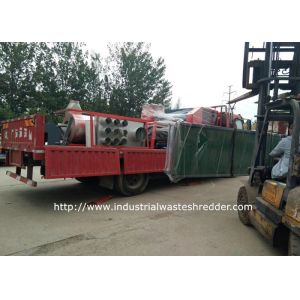

Wooden Box Safety Delivery Package For Your Refer
Inner Cutting Blades For Your Refer
Spandex Fiber Cutting Pieces Sample For Your Refer
If any interested, please feel free to contact us
