    15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface

    Ask Lasest Price
    Brand Name : guangzhi
    Model Number : GZ-H001057
    Certification : CE、FCC、RoHS
    Price : To be quoted
    Payment Terms : T/T, Paypal
    Supply Ability : 100000pcs
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface

    Prod uct Name: Industrial Plastic Keyboard

    Product P/N:GZ-H001057

    Product Size: 135*85*65mm

    Product Description: The bank password keypad solves a series of software and hardware incompatibility problems caused by the bank's complicated terminal and inconsistent driver interface programs. It can be connected to PC and STAR series terminals, GW series terminals, WYSE terminals, New World terminals, Guoguang terminals, Haiwei terminals, purple pin terminals and other major domestic and foreign terminal manufacturers. Different cables can be matched according to user requirements to suit various terminal requirements

    Keyboard send command:

    0-9 key: send, display the value in real time

    Clear: Send (0x08) and clear the screen

    F1:Send(0*41)

    F2:Send(0*42)

    Enter:Send(0x0d)and clear the screen

    .:Send(0x2e)

    Communication command:

    Communication Protocol : RS232,19200,N,8,1.

    1.Clear screen:
    Format:ESC C 0

    HEX:1B 43 30

    2. Display character command

    Format: ESC S 0 BYTE[0..6] CR

    HEX:1B 53 30 BYTE[0..6] 0D

    Note: The character set displayed by the LED is limited to 0-9 and space keyboard

    For example: To display 123.67, the transfer number is:

    HEX: 1B 53 30 20 31 32 B3 36 37 0D

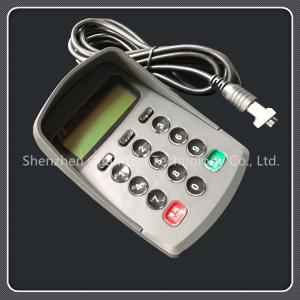

    Product Image:




    Interface definition:

    15V
    2TXD
    3RXD
    4VBUS
