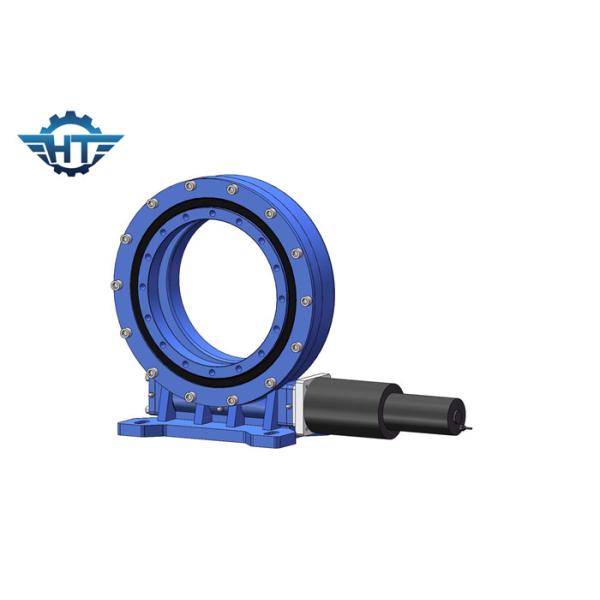

IP66 Small Backlash Slewing Bearing For Linkage Solar Panel
Tracking System
Product Description
The rotation of the solar panels is a good solution to increase the
production of energy. The vertical series slewing bearing, slewing
drive are typically designed for the application of solar tracking
system. It adopts enclosed design and the protection level can
reach IP66 to meet harsh environment working conditions. It can
effectively prevent dust, rain and other hard conditions. It suits
field usage such as desert, alpine and other hostile environments.
Features
1. Easy to mount and maintain.
2. The design and mounting dimensions are normal dimensions which
is easy for the users' replacements
The vertical slewing bearing drive is generally installed
perpendicular to the ground and is widely used in various
photovoltaic power generation projects, such as parabolic or trough
Csp power generation, fresnel Csp power generation, flat single
axis solar tracking system, oblique solar tracking system. It is
with high precision, usually this model with enclosed housing, it
can prevent dust and water from entering the inside.
Performace of VE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Our Services
Our engineering and design department will propose you innovative
solutions, using the most modern software. We can design parts
specially adapted to your needs.
Package and Delivery
We packed the slewing ring drives by fixed them into the plywooden
box in case of any damage movement.
For samples, the common shipping way is shipped to door by DHL,
UPS, FEDEX or TNT express.
For bulk orders, we can ship by sea which is quite cost effective
way.
