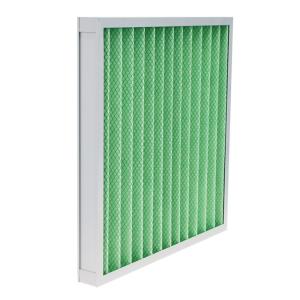

G4 Panel Pre Air Filter Low Primary Resistance Cover Both Sides With Metal Mesh

    Buy cheap G4 Panel Pre Air Filter Low Primary Resistance Cover Both Sides With Metal Mesh from wholesalers

    Buy cheap G4 Panel Pre Air Filter Low Primary Resistance Cover Both Sides With Metal Mesh from wholesalers
    • Buy cheap G4 Panel Pre Air Filter Low Primary Resistance Cover Both Sides With Metal Mesh from wholesalers
    • Buy cheap G4 Panel Pre Air Filter Low Primary Resistance Cover Both Sides With Metal Mesh from wholesalers

    G4 Panel Pre Air Filter Low Primary Resistance Cover Both Sides With Metal Mesh

    Ask Lasest Price
    Brand Name : YANING
    Model Number : YN-PF4
    Certification : CE/ISO
    Price : Reconsideration
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A,Paypal
    Supply Ability : 10000 pcs per month
    Delivery Time : 5~25 working days based on the quantity
    • Product Details
    • Company Profile

    G4 Panel Pre Air Filter Low Primary Resistance Cover Both Sides With Metal Mesh

    G4 panel pre filter pre pleat 40 air filters cover both sides with metal mesh


    Description:


    MediaCotton
    FrameAluminum/Galvanized steel/Stainless steel
    Efficiency40%~90% @ 2.0μm
    Max. Temperature80°C
    Max. Humidity100%
    Optional aluminum46~96mm
    FilterHigh-quality polyester synthetic fiber
    Support grillGalvanized steel wire frame,Square grid
    FrameAluminum alloy galvanized iron
    Operating temperatureUp to 90 degrees sustainable
    Rated wind speed2.5m/s
    Filtration efficiencyG4,F5,F6

    The filter is low initial pressure drop and high dust holding capacity.

    The filter media inside the frame can be unfolded or pleated.

    To supply in paper or metal frames as aluminum or galvanized.

    Easy to be changed and the metal frame panel filters can be washed reused.


    Features:


    1. Aluminum Frame, good installation strength, good appearance;


    2. Low primary resistance, High capacity for dust with slim structure;


    3. Dimension is customized.


    Application:


    Applied to the terminal filtration, air conditioning filtration system, used in hospital, electronic industry, food, precision instrument, electron semiconductors


    Product dimension:

    Product Size(W*H*T)

    Rated air flow(m3/h)

    2.5m/s

    Measurement efficiency(%)G4

    Initial resistance(Pa)

    2.5m/s

    287*490*21136090-95180
    287*592*21170090-95180
    490*490*21238090-95180
    490*592*21280090-95180
    592*592*21340090-95180
    287*490*46136090-95130
    287*592*46170090-95130
    490*490*46238090-95130
    490*592*46280090-95130
    592*592*46340090-95130
    287*490*95136090-95110
    287*592*95170090-95110
    490*490*95238090-95110
    490*592*95280090-95110
    592*592*95340090-95110
